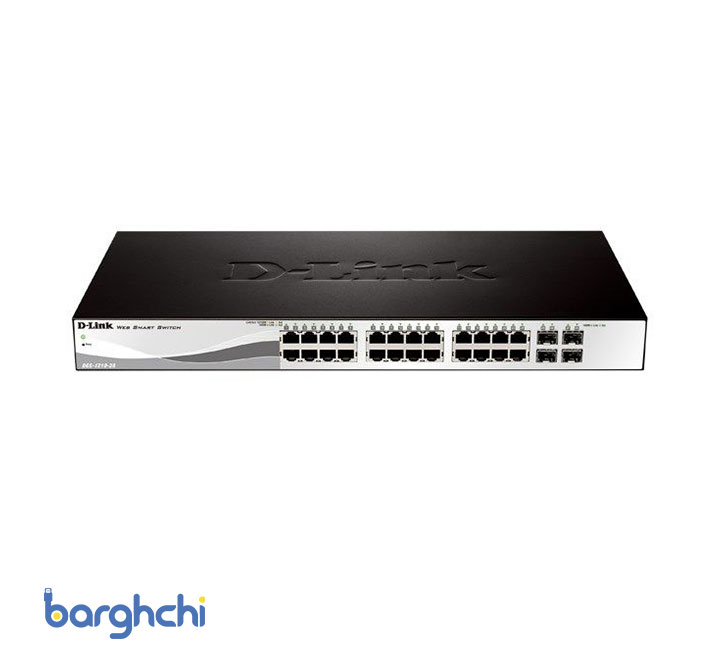

معرفی سوئیچ هوشمند D-link مدل DGS-1210-28
| مشخصات محصول | مشخصات محصول | جزییات |
|---|---|---|
| ویژگی‌های سخت‌افزاری | لایه |
L2 |
| رابط ها |
24 10/100/1000 Mbps, 4 SFP |
|
| تعداد پورت LAN |
28 |
|
| 10/100/1000 Base-T Ports |
24 |
|
| PoE |
ندارد |
|
| منبع تغذیه |
100 to 240 VAC, 50 to 60 Hz Internal |
|
| ابعاد(طول*عرض*ارتفاع)(میلی متر) |
440x210x44 |
|
| نشانگر LED |
Link/Activity/Speed (Per 10/100/1000 Mbps port), Link/Activity/Speed (Per SFP port), Per device: Power |
|
| داخل رک |
دارد |
|
| PoE plus | PoE plus |
ندارد |
| ویژگی های نرم افزاری | استانداردهای پورت |
Auto-negotiation, IEEE 802.3 10BASE-T Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3x Flow Control for Full-Duplex Mode |
| نوع سوئیچ |
مدیریتی |
|
| ظرفیت سوئیچ |
56 Gbps |
|
| فایروال و امنیت دسترسی |
ARP Spoofing Prevention, Broadcast/Multicast/Unknown Unicast Storm Control, D-Link Safeguard Engine, DHCP Server Screening, Discover connected devices and click to bind, Inspect ARP packets and/or IP packets, Max. 64 entries, Port Security – Supports up to 64 MAC addresses per port, Smart Binding, SSL:Supports v1/v2/v3 -Supports IPv4/v6 access, Static MAC, Supports 512 entries of IP-MAC-Port binding, Supports DHCP Snooping, Traffic Segmentation, Trusted Host |
|
| مدیریت |
SmartConsole Utility, Telnet Server, TFTP Client, Multi-Language Web-based GUI – English (default) – Simplifed Chinese – Traditional Chinese – French – German – Italian – Japanese – Portuguese – Russian – Spanish, Simplifed CLI |
|
| VLAN |
802.1Q, Max. 10 user defined OUI, Max. 256 static VLAN groups, Max. 4094 VIDs, Max. 4094 VIDs Management VLAN Asymmetric VLAN Auto Voice VLAN, Max. 8 default OUI Auto Surveillance VLAN |
|
| کیفیت خدمات (QOS) | Number of Queues per port |
4 |
| Priority Queue Mapping based on DSCP |
دارد |
|
| Weighted Round Robin (WRR) |
دارد |
|
| عملکرد | MAC-address table |
16K |
| عملکردهای لایه 2 |
802.1D STP, 802.1w RSTP Loopback Detection 802.3ad Link Aggregation, 802.3ad Link Aggregation, 802.3x Flow Control, Filters all unregistered groups Spanning Tree Protocol, Flow Control, Forwards all unregistered groups, HOL Blocking Prevention IGMP Snooping, IGMP v1/v2 Snooping, LLDP, LLDP-MED, Many-to-One, Max. 14 groups per device/8 ports per group, One-to-One, Per VLAN IGMP snooping, Supports 256 IGMP snooping groups, Supports 64 static multicast addresses, Supports IGMP Querier L2 Multicast Filtering, Supports Mirroring for Tx/Rx/Both Cable Diagnostics Configurable MDI/MDIX |
|
| سایر ویژگی‌ها | گواهی نامه ها |
BSMI, C-Tick, CE Class A, CE LVD, cul, FCC Class A, ICES-003, VCCI Class A |
| پشتیبانی از D-LINK Green |
دارد |
|
| گارانتی | گارانتی |
2 سال گارانتی ایزی |
