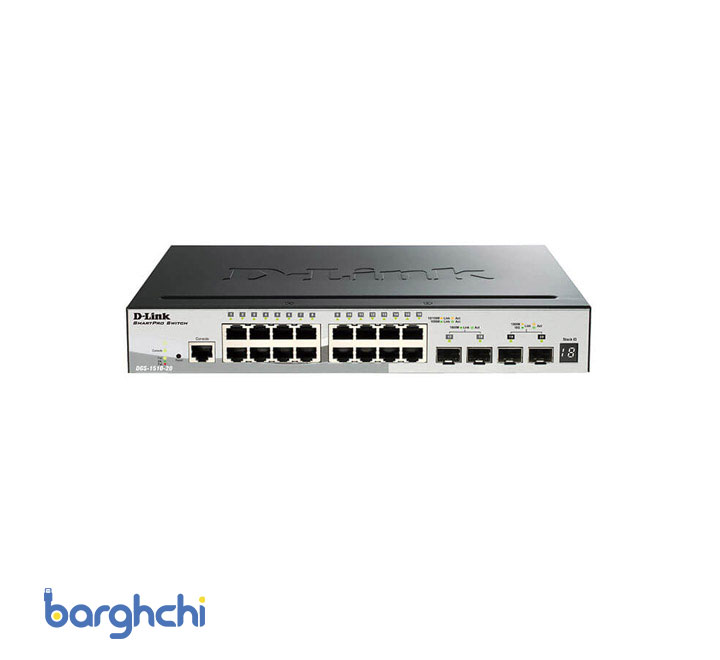

معرفی سوئیچ هوشمند D-link مدل DGS-1510-20
DGS-1510-20 سوییچ شبکه مدیریتی لایه 2 با 16 پورت10/100/1000Base-T و 2 پورت گیگابیت SFP و 2 پورت10GE+SFP
| مشخصات محصول | مشخصات محصول | جزییات |
|---|---|---|
| ویژگیهای سختافزاری | لایه |
L2 + |
| رابط ها |
16 10/100/1000 Mbps, 2 10G SFP+, 2 Gigabit SFP |
|
| تعداد پورت LAN |
20 |
|
| 10/100/1000 Base-T Ports |
16 |
|
| PoE |
ندارد |
|
| منبع تغذیه |
100 to 240 VAC, 50 to 60 Hz Internal |
|
| فن |
فن هوشمند |
|
| ابعاد(طول*عرض*ارتفاع)(میلی متر) |
280x180x44 |
|
| نشانگر LED |
Link/ Activity/Speed (per Gigabit SFP port), Link/Activity/Speed (Per 10/100/1000 Mbps port), Link/Activity/Speed (Per 10G SFP+ port), Power/Stacking ID/Fan (per device) |
|
| داخل رک |
دارد |
|
| PoE plus | PoE plus |
ندارد |
| ویژگی های نرم افزاری | استانداردهای پورت |
802.3ae 10 GbE, Auto-negotiation, IEEE 802.3 10BASE-T Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3x Flow Control for Full-Duplex Mode |
| نوع سوئیچ |
مدیریتی |
|
| ظرفیت سوئیچ |
76 Gbps |
|
| فایروال و امنیت دسترسی |
ARP Spoofing Prevention, Broadcast/Multicast/Unknown Unicast Storm Control, D-Link Safeguard Engine, DHCP Server Screening, DHCP Snooping, DHCPv6 Guard, DoS Attack Prevention, Dynamic ARP Inspection, IP Source Guard, IP-MAC-Port Binding, IPv6 Snooping, IPv6 Source Guard, Max. 64 entries, Port Security : Supports up to 128 MAC addresses per port, RA Guard, SSH:Supports SSH v2- Supports IPv4/v6 access, SSL Supports v1/v2/v3, SSL:Supports v1/v2/v3 -Supports IPv4/v6 access, Static MAC, Static MAC Address, Traffic Segmentation |
|
| مدیریت |
SmartConsole Utility, SNMP, System Log, Telnet Server, TFTP Client, Trap for SmartConsole Utility, BootP/DHCP Client, CLI, Configurable MDI/MDIX, D-Link Network Assistant support1, DHCP Client, ICMP v6, IPv4/v6 Dual Stack, IPv6 Neighbor Discovery, Max. 10,000 log entries, RMONv1, SNMP Trap, SNTP, Supports IPv4 log server, Supports v1/v2/v3, Web-based GUI |
|
| VLAN |
4K VLAN Groups, 802.1Q tagged VLAN VLAN Group, Asymmetric VLAN, Max. 10 user defined OUI, Max. 4094 VIDs Management VLAN Asymmetric VLAN Auto Voice VLAN |
|
| عملکردهای لایه 3 |
256 Static ARP, 32 IPv6 Static Route Entries, 64 IPv4 Static Route Entries, ARP, Default Route, IPv6 Neighbor Discovery (ND), Static Route, Supports Gratuitous ARP |
|
| کیفیت خدمات (QOS) | Number of Queues per port |
8 |
| Priority Queue Mapping based on DSCP |
دارد |
|
| Weighted Round Robin (WRR) |
دارد |
|
| عملکرد | MAC-address table |
16K |
| عملکردهای لایه 2 |
802.1D STP, 802.1w RSTP Loopback Detection 802.3ad Link Aggregation, 802.3x Flow Control, Filters all unregistered groups Spanning Tree Protocol, Flow Control, Forwards all unregistered groups, HOL Blocking Prevention, HOL Blocking Prevention IGMP Snooping, IGMP per VLAN, IGMP v1/v2 Snooping, IGMP v3 awareness, Jumbo Frame up to 9000 Bytes, LLDP, LLDP-MED, Loopback Detection, Many-to-One, MLD Snooping Querier, One-to-One, Per VLAN IGMP snooping, Spanning Tree Protoco, Support 128 static multicast addresses, Support 4 mirroring groups, Supports 128 Static Multicast Addresses, Supports 512 groups, Supports 512 IGMP groups, Supports IGMP Querier L2 Multicast Filtering, Supports Mirroring for Tx/Rx/Both Cable Diagnostics Configurable MDI/MDIX, Supports MLD v1/v2 awareness |
|
| سایر ویژگیها | گواهی نامه ها |
BSMI, C-Tick, CB, CCC, CE, cul, FCC, VCCI |
| پشتیبانی از D-LINK Green |
دارد |
|
| گارانتی | گارانتی |
2 سال گارانتی ایزی |
