معرفی روتر سیسکو مدل Cisco 1841

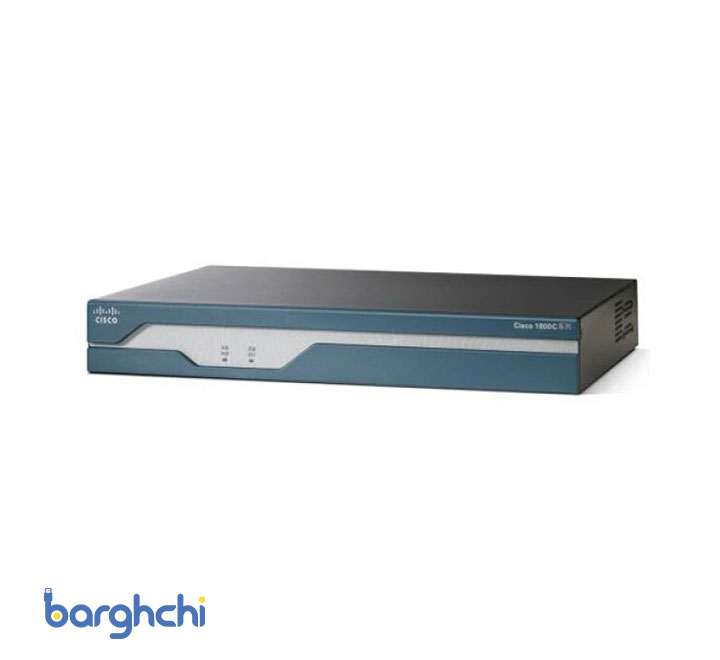

شکل 1 : ظاهر روتر سیسکو مدل Cisco 1841

ظاهر روتر سیسکو مدل Cisco 1841
نگاه اجمالی | |
کد محصول | CISCO1841 |
Rack Units | 1RU |
WAN Ports | 2 x 10/100 FE WAN Ports |
8-Port Managed Switch | 4-port single-wide 10/100 BASE-T with HWIC-4ESW |
802.11 a/b/g Wireless Model | Yes (with HWIC-AP) |
DRAM | 256 MB (installed) / 384 MB (max) – SDRAM |
فلش مموری | 64 MB (installed) / 128 MB (max) |
ابعاد | 34.3 cm x 27.4 cm x 4.4 cm |
وزن بسته | 4.45 Kg |
شکل 2 : روتر از روبرو
①System Power (SYS PWR) LED
If you need 3G wireless WAN option provided, Cisco 881G series would have a 3G card left beside the USB port, meeting your need.

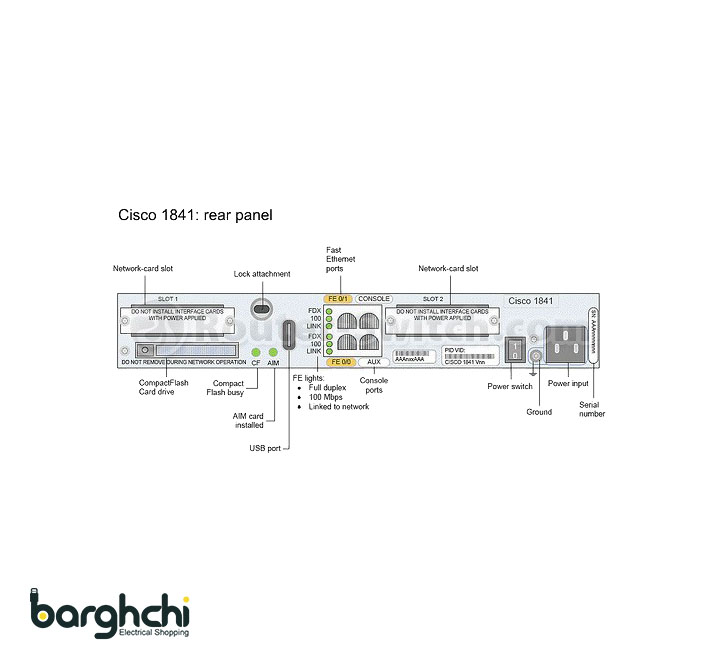

شکل 3 : روتر از پشت

تصویر روتر سیسکو مدل Cisco 1841 از پشت
روتر
③Fast Ethernet ports and LEDs
④Console port
⑤Slot 0 (WIC, VWIC—data only, or HWIC)
⑥CompactFlash memory card slot
⑦USB port
⑪Input power connection
تجهیزات جانبی
جدول 2 لوازم جانبی WS-C2960 + 24TC-L را نشان می دهد.
جدول 2:
توضیحات | مدل |
Four port 10/100 Ethernet switch interface card Cisco Router High-Speed WAN Interface card | HWIC-4ESW |
AP HWIC w 2.4 Ghz Radio for 802.11 b/g Americas Cisco Router High-Speed WAN Interface card | HWIC-AP-G-A |
AP HWIC, 2 radios(2.4/5GHz radios for 802.11a/b/g) ANZ Cisco Router High-Speed WAN Interface card | HWIC-AP-AG-N |
AP HWIC, 2 radios( 2.4/5Ghz Radios 802.11 a/b/g) FCC Cisco Router High-Speed WAN Interface card | HWIC-AP-AG-B |
مقایسه با کالا مشابه
جدول 3 مقایسه با کالاهای مشابه را نشان می دهد.
جدول 3 :
CISCO1841 | CISCO1941/K9 | مدل |
1 RU | 2 RU | Rack Units |
2 x 10/100 FE WAN Ports | 2 integrated 10/100/1000 Ethernet ports: GE0/0&GE0/1 | رابط ها |
N/A |
2 enhanced High-Speed WAN Interface Card slots |
Expansion Slot(s) |
256 MB (installed) / 384 MB (max) – SDRAM | 512 MB (installed) / 2.5 GB (max) | رم |
64 MB (installed) / 128 MB (max) | 256 MB (installed) / 8 GB (max) | فلش مموری |
دریافت اطلاعات بیشتر
آیا در مورد روتر سیسکو Cisco 1841 سوالی دارید؟
اکنون از طریق Live Chat یا sales@barghchi.com با ما تماس بگیرید.
