درباره روتر سیسکو مدل Cisco 2901/k9

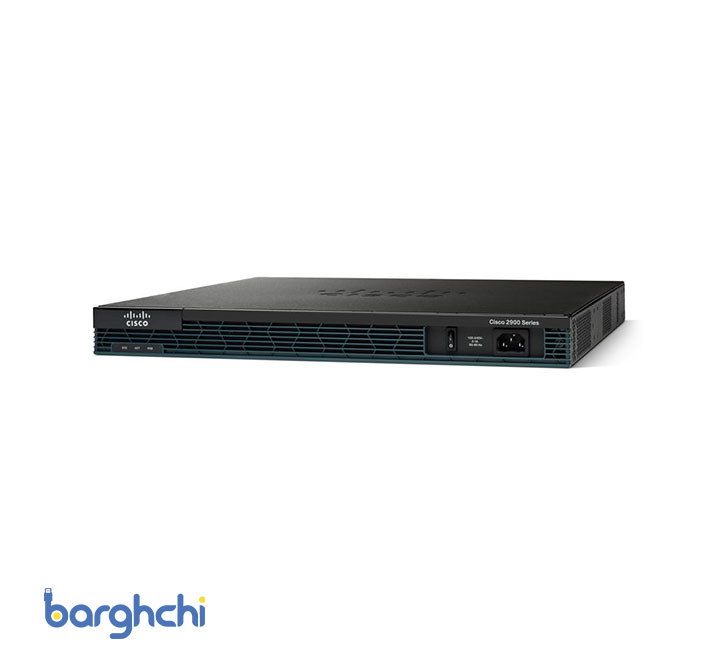

شکل 1 : ظاهر روتر سیسکو مدل Cisco 2901/k9

روتر سیسکو مدل Cisco 2901/k9

مشخصات کلی روتر سیسکو مدل Cisco 2901/k9

نگاه اجمالی روتر سیسکو 2901
کد محصول CISCO2901/k9
Rack Units 1U
رابط ها 2 integrated 10/100/1000 Ethernet ports
(Expansion Slot(s

2 onboard digital signal processor (DSP) slots
4 enhanced high-speed WAN interface card slots
1 onboard Internal Service Module for application services

رم 512 MB (installed) / 2 GB (max)
فلش مموری 256 MB (installed) / 8 GB (max)
ابعاد 43.9 cm x 43.8 cm x 4.5 cm
وزن بسته 11.48 Kg

Figure 2 shows the front panel of the Cisco 2901 router with ports and LEDs.
روتر سیسکو مدل Cisco 2901/k9
Note:
①SYS
②ACT
③POE
④On/Off switch
⑤AC power connector
Table 2 shows the LEDs area description

LED رنگ توضیحات
SYS سبز یکپارچه Solid green indicates normal operation
Blinking green System is booting or is in ROM monitor mode
کهربایی System error
Off Power is off or system board is faulty
ACT سبز Solid or blinking indicates packet activity between the forwarding and routing engine and any I/O port
Off No packet transfers are occurring
PoE سبز PoE is available
کهربایی Power supply is not supplying PoE power

Figure 3 shows the back panel of the Cisco 2901 router with LEDs.
روتر سیسکو مدل Cisco 2901/k9
Note:
①Compact flash 0 and 1 (0, right)
②ISM
③PVDM3 0 and 1 (0, right)
④EN (Enable USB console)
⑤EN (Enable RJ-45 console)
⑥S (Speed)
⑦L (Link)
Table 3 shows some LEDs description.

LED رنگ توضیحات Location
CompactFlash 1 سبز Flash memory is busy Back Panel
کهربایی Initialized with error
Blinking Green then turns off CompactFlash is ready for removal
CompactFlash 0 سبز Flash memory is busy Back Panel
کهربایی Initialized with error
Blinking Green then turns off CompactFlash is ready for removal
S (Speed) 1 blink + pause GE port operating at 10 Mb/s Back Panel
2 blink + pause GE port operating at 100 Mb/s
3 blink + pause GE port operating at 1000 Mb/s

L (Link)

سبز GE link is established

Back Panel

Off No GE link is established
EN (RJ-45 console port) سبز The RJ-45 console port is active Back Panel
EN (USB serial console port) سبز The USB console port is active Back Panel
ISM سبز Initialized Back Panel
کهربایی Initialized with error
Off Not installed
PVDM 0, and 1 سبز PVDM is initialized
کهربایی PVDM is detected but not initialized Back Panel
Off

No PVDM installed

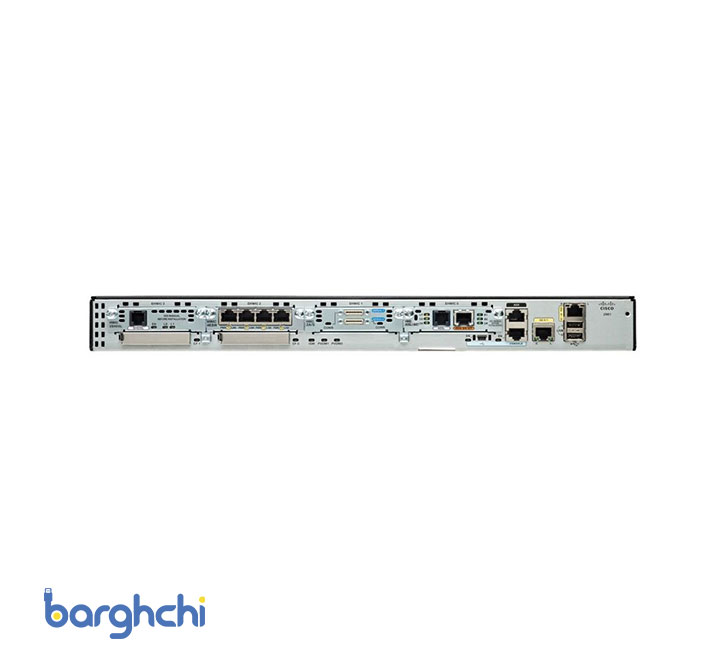

Figure 4 shows the back panel of the Cisco 2901 router with slots and ports.
روتر سیسکو مدل Cisco 2901/k9Note:
①EHWIC 0,1,2 and 3 (0, far right)
②Compact flash 0 and 1
③USB serial port
④RJ-45 serial console port
⑤10/100/1000 Ethernet port (GE 0/1)
⑥USB 0 and 1 (1, top)
⑦AUX
⑧10/100/1000 Ethernet port (GE 0/0)
⑨Ground

آنباکسینگ روتر سیسکو مدل Cisco 2901/k9

روتر سیسکو مدل Cisco 2901/k9

Cards and Licenses
Table 4 shows some recommended models for this router.



Cards توضیحات
VWIC3-2MFT-G703 Cisco Voice/WAN Card VWIC3-2MFT-G703
HWIC-2T 2-Port Serial WAN Interface Card Cisco Router High-Speed WAN Interface card
EHWIC-1GE-SFP-CU

Cisco 1900, 2900, 3900 Router EHWIC WAN Card vb
EHWIC-1GE-SFP-CU

EHWIC-4ESG

Four port 10/100/1000 Base-TX Gigabit Ethernet switch interface card for Cisco 1900 2900 3900 Routers

ISM-SRE-300-K9 Internal Services Module (ISM) with Services Ready Engine
PVDM3-16 16-channel high-density voice DSP module
MEM-CF-256U1GB 256MB to 1GB Compact Flash Upgrade for Cisco 1900,2900,3900
MEM-CF-256U2GB 256MB to 2GB Compact Flash Upgrade for Cisco 1900,2900,3900
MEM-CF-256U512MB 256MB to 512MB CF Upgrade for Cisco 1900,2900,3900 ISR
MEM-CF-256U4GB 256MB to 4GB Compact Flash Upgrade for Cisco 1900,2900,3900
MEMUSB-1024FT 1GB USB Flash Token
Licenses توضیحات
L-SL-29-SEC-K9= Cisco 2900 License L-SL-29-SEC-K9 Security E-Delivery PAK for Cisco 2901-2951
L-SL-29-APP-K9= Cisco Application Experience License ISR 2900 Series – includes licenses for: AppX, DATA and WAASX
L-SL-29-SECNPE-K9= Cisco 2900 License L-SL-29-SECNPE-K9 SEC No Payload Encryption E PAK for Cisco 2901-2951
L-SL-29-UC-K9= Cisco 2900 License L-SL-29-UC-K9= Unified Communication E-Delivery PAK for Cisco 2901-2951

دریافت اطلاعات بیشتر
آیا در مورد روتر سیسکو مدل Cisco 2901/k9 سوالی دارید؟
اکنون از طریق Live Chat یا sales@barghchi.com با ما تماس بگیرید.

ارزش خرید از دیدگاه فروشنده
    نوع محصول

    روتر

    enclosure type

    modular, Rack-mountable – 1U

    Connectivity Technology

    Wired

    Network / Transport Protocol

    IPSec, L2TPv3

    Routing Protocol

    BGP, Bidirectional Forwarding Detection (BFD), DVMRP, EIGRP, GRE, IGMPv3, IPv4-to-IPv6 Multicast, IS-IS, MPLS, OSPF, PIM-SM, PIM-SSM, policy- based routing (PBR), static IP routing, static IPv4 routing, static IPv6 routing

    Remote Management Protocol

    RMON, SNMP, TR-069

    Compliant Standards

    ANSI T1.101, IEEE 802.1ag, IEEE 802.1ah, IEEE 802.1Q, IEEE 802.3, IEEE 802.3af, IEEE 802.3ah, ITU-T G.823, ITU-T G.824

    ظرفیت حافظه رم

    512 MB (installed) / 2 GB (max)

    Flash Memory

    256 MB (installed) / 8 GB (max)

    Status Indicators

    link activity, power

    رابط ها

    2 x 10Base-T/100Base-TX/1000Base-T – RJ-45, Management : 1 x console – mini-USB Type B, Management : 1 x console – RJ-45, Serial : 1 x auxiliary – RJ-45, USB : 2 x 4 pin USB Type A

    Expansion Slots

    1 (total) / 1 (free) x ISM, 2 (total) / 1 (free) x CompactFlash Card, 2 (total) / 2 (free) x PVDM, 4 (total) / 4 (free) x EHWIC

    Power Device

    internal, Power supply

    ولتاژ موردنیاز

    AC 120/230 V ( 50/60 Hz )

    Rack Mounting Kit

    Included

    OS Provided

    Cisco IOS IP Base

    Service & Support

    90 days warranty

    Service & Support Details

    90 days warranty, Limited warranty

    Min Operating Temperature

    32 °F

    Max Operating Temperature

    104 °F

    Humidity Range Operating

    10 – 85%

    ویژگی ها

    Class-Based Weighted Fair Queuing (CBWFQ), firewall protection, IPv6 support, MPLS support, NetFlow, Syslog support, VPN support, Web Services Management Agent (WSMA), Weighted Random Early Detection (WRED)

    ابعاد

    17.2 × 17.3 × 1.8 in

    وزن بسته

    25.09 lbs (11.48 Kg)

    وزن(تقریبی)

    13.4 lbs (6.08 Kg)
