درباره روتر سیسکو مدل Cisco 888-K9
شکل 1 : ظاهر روتر سیسکو مدل Cisco 888-K9
| نگاه اجمالی روتر سیسکو مدل 888 | |
| کد محصول | CISCO 888-K9 |
| Rack Units | 1 RU |
| WAN Ports | 1 x 10Base-T/100Base-TX – RJ-45 |
| LAN Ports | 4 x 10/100 Mbps fast Ethernet managed switch ports with optional Power over Ethernet (PoE) on two switch ports |
| Management Ports | 1 x console – RJ-45 |
| USB | 1 x 4 PIN USB Type A |
| DRAM | 256 MB (installed) / 768 MB (max) – DDR2 SDRAM |
| فلش مموری | 128 MB |
| ابعاد | 32.5 cm x 24.9 cm x 4.4 cm |
| وزن بسته | 4.84 Kg |

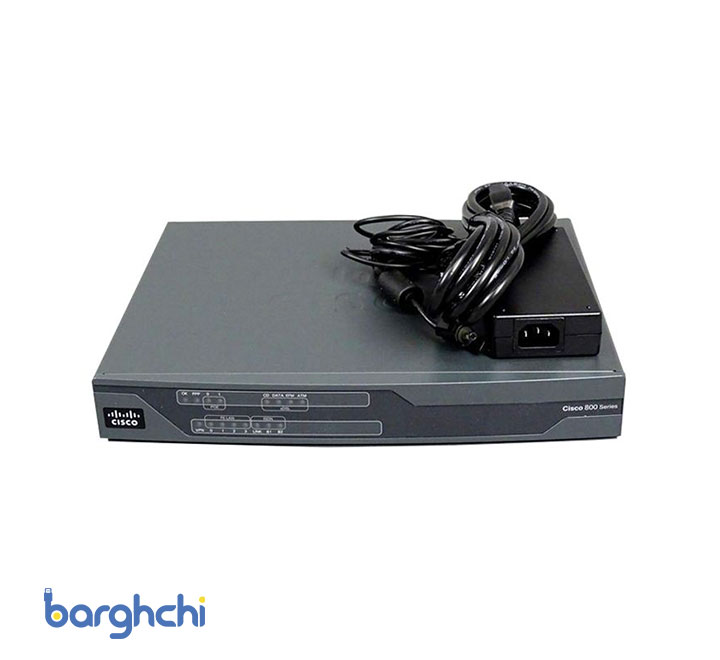

شکل 2 : روتر از روبرو
Note:
①LED Area
②USB Port for External Device
If you need 3G wireless WAN option provided, Cisco 881G series would have a 3G card left beside the USB port, meeting your need.

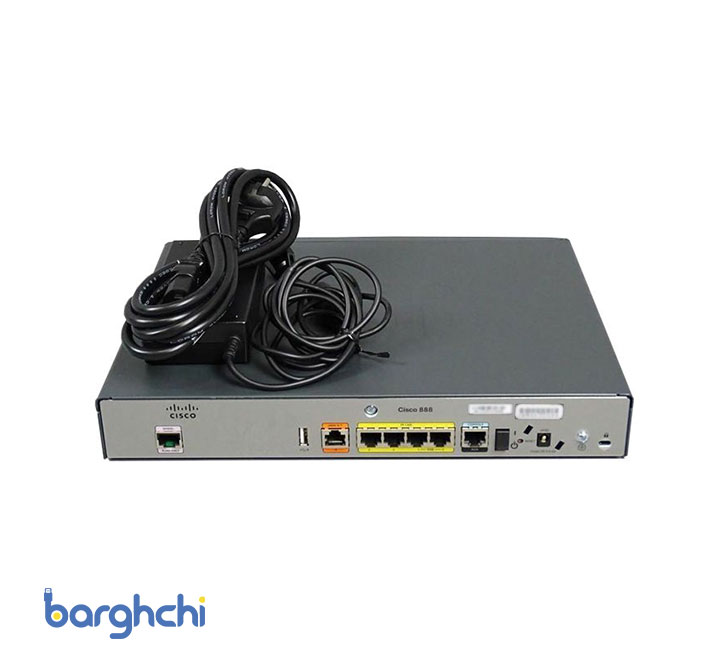

شکل 3 : روتر از پشت
①WAN: 1 x 10Base-T/100Base-TX – RJ-45
②LAN: 4 x 10Base-T/100Base-TX – RJ-45
③Management: 1 x console – RJ45
④USB: 1 x 4 PIN USB Type A
⑤Reset Button
⑥Power Connector
⑦Security Cable Lock
⑧Power over Ethernet(Factory Option)
· Four-port 10/100 Fast Ethernet managed switch with VLAN support; two ports support Power over Ethernet (PoE) for powering IP phones or external access points
· Secure 802.11g/n access-point option based on draft 802.11n standard with support for autonomous or Cisco Unified WLAN architectures
· CON/AUX port for console or external modem
· One USB 1.1 port for security eToken credentials, booting from USB, and loading configuration
More Details:
The Cisco 880 Series provides:
· Firewall
· Content filtering
· VPNs, and WLANs, at broadband speeds to small offices
· Easy deployment
· Centralized management features
Available options on the Cisco 888 Integrated Services Router include:
· Survivable Remote Site Telephony
· Built-in advanced security, including intrusion prevention, GET VPN, and dynamic multipoint VPN (DMVPN)
· Up to 20 VPN tunnels
· Cisco Configuration Professional for simplified management
· WAN connection with multiple access options
· Business continuity with primary and backup connections on the Cisco 880 router, including third-generation wireless and ISDN
· Four 10/100 Mbps fast Ethernet managed switch ports with optional Power over Ethernet (PoE) on two switch ports
· Integrated access points based on the IEEE 802.11n draft 2.0 standard that uses MIMO (multiple-input, multiple-output) to improve coverage for existing and new clients
· Cisco Unified Wireless Management
· Universal software image for easy expansion with software activation
تجهیزات جانبی روتر سیسکو مدل Cisco 888-K9
جدول 2 تجهیزات جانبی روتر را نشان می دهد.
جدول 2 :
| Items | توضیحات |
| CAB-AC= | CAB-AC= AC Power Cord (North America), C13, NEMA 5-15P, 2.1m |
| CAB-ETH-S-RJ45 | Cisco Router Cable CAB-ETH-S-RJ45 |
مقایسه با کالا مشابه
جدول 3 مقایسه با کالاهای مشابه را نشان می دهد.
جدول 3 :
| مدل | CISCO891-K9 | CISCO888-K9 |
| Product Type | (Router + 8-port switch (integrated | (Router – 4-port switch (integrated |
| DRAM | 512 MB (installed) / 768 MB (max) – DDR2 SDRAM | 256 MB (installed) / 768 MB (max) – DDR2 SDRAM |
| فلش مموری | 256 MB (installed) / 256 MB (max) | 128 MB |
