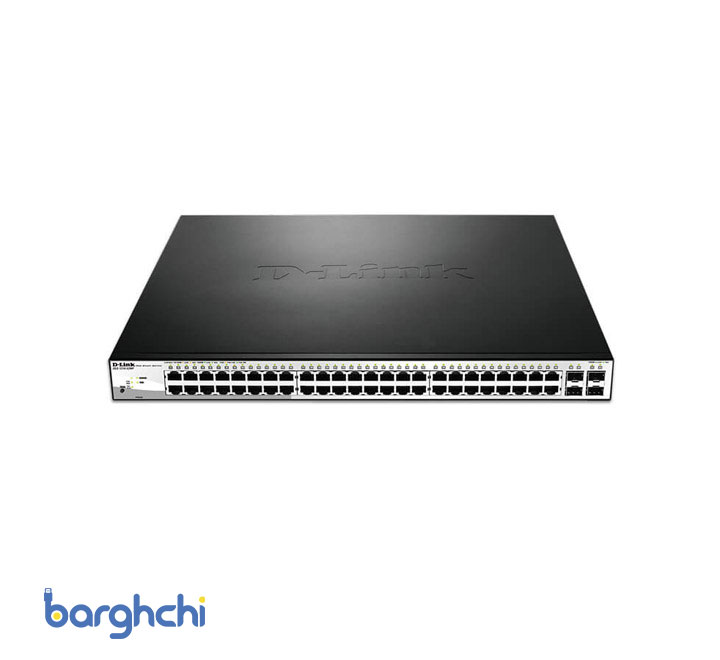

معرفی سوئیچ هوشمند D-link مدل DGS-1210-52MP
| مشخصات محصول | مشخصات محصول | جزییات |
|---|---|---|
| ویژگی‌های سخت‌افزاری | لایه |
L2 |
| رابط ها |
4 SFP, 48 Ports 10/100/1000 Mbps, PoE capable |
|
| تعداد پورت LAN |
52 |
|
| 10/100/1000 Base-T Ports |
48 |
|
| PoE |
دارد |
|
| PoE(802.3af) Ports |
1-8 |
|
| PoE+(802.3at) Ports |
9-48 |
|
| PoE Budget |
370w |
|
| منبع تغذیه |
100 to 240 VAC, 50 to 60 Hz Internal |
|
| ابعاد(طول*عرض*ارتفاع)(میلی متر) |
440x430x44 |
|
| نشانگر LED |
Link/Activity/Speed (Per 10/100/1000 Mbps port) |
|
| داخل رک |
دارد |
|
| PoE plus | PoE plus |
دارد |
| ویژگی های نرم افزاری | استانداردهای پورت |
Auto-negotiation, IEEE 802.3 10BASE-T Ethernet (twisted-pair copper), IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted- pair copper), IEEE 802.3az compliance, IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper), IEEE 802.3x Flow Control, IEEE802.3, IEEE802.3ab, IEEE802.3az, IEEE802.3u, IEEE802.3z |
| نوع سوئیچ |
مدیریتی |
|
| ظرفیت سوئیچ |
104 Gbps |
|
| مدیریت |
System Log, Telnet Server, TFTP Client, Backup/Upgrade firmware, BootP/DHCP Client, Compact CLI, Configurable MDI/MDIX, D-Link Network Assistant Utility, DHCP Auto Configuration, ICMP v6, IPv4/v6 Dual Stack, Max. 500 log entries, RMONv1, Smart Wizard, SNMP Trap, SNMP:Supports v1/v2c/v3, SNTP, Time Setting, Trusted Host, Upload/Download Configuration file, Web-based GUI |
|
| فایروال و امنیت دسترسی |
802.1X Port-based Access Control, ARP + IP Inspection, ARP Inspection, ARP Spoofing Prevention, Broadcast/Multicast/Unknown Unicast Storm Control, D-Link Safeguard Engine, DHCP Server Screening, Duplicate Address Detection (DAD), IP-MAC-Port Binding (Smart Binding), Max. 64 entries, Port Security – Supports up to 64 MAC addresses per port, SSH v2, SSL Supports v1/v2/v3, Supports 512 address binding entries, Supports DHCP Snooping, Traffic Segmentation |
|
| VLAN |
802.1Q, Asymmetric VLAN, Configurable VID from 1 – 4094, Max. 256 static VLAN groups, VLAN Group |
|
| عملکردهای لایه 3 |
IP Interface, IPv6 Neighbor Discovery (ND), Supports 1 interface |
|
| کیفیت خدمات (QOS) | Number of Queues per port |
8 |
| Priority Queue Mapping based on DSCP |
دارد |
|
| Weighted Round Robin (WRR) |
دارد |
|
| عملکرد | MAC-address table |
16K |
| عملکردهای لایه 2 |
802.1D STP, 802.1w RSTP Loopback Detection 802.3ad Link Aggregation, 802.3x Flow Control, Filters all unregistered groups Spanning Tree Protocol, Flow Control, Forwards all unregistered groups, HOL Blocking Prevention IGMP Snooping, IGMP v1/v2 Snooping, Jumbo Frames up to 9216 Byte, LLDP, LLDP-MED, Many-to-One, Max. 8 groups per device, max. 8 ports per group Port Mirroring, Maximum of 26 groups/8 ports per group, Multicast Filtering, One-to-One, Per VLAN IGMP snooping, Supports 256 IGMP snooping groups, Supports 64 static multicast addresses, Supports IGMP Querier L2 Multicast Filtering, Supports Mirroring for Tx/Rx/Both Cable Diagnostics Configurable MDI/MDIX |
|
| سایر ویژگی‌ها | گواهی نامه ها |
BSMI, C-Tick, CCC, CE Class A, CE LVD, cul, FCC Class A, VCCI Class A |
| پشتیبانی از D-LINK Green |
دارد |
|
| گارانتی | گارانتی |
2 سال گارانتی ایزی |
