نقد و بررسی محصول

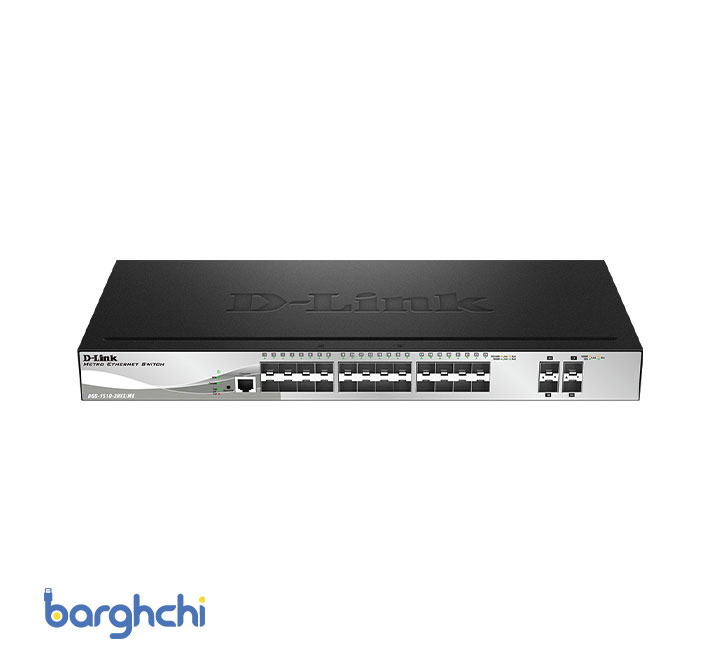

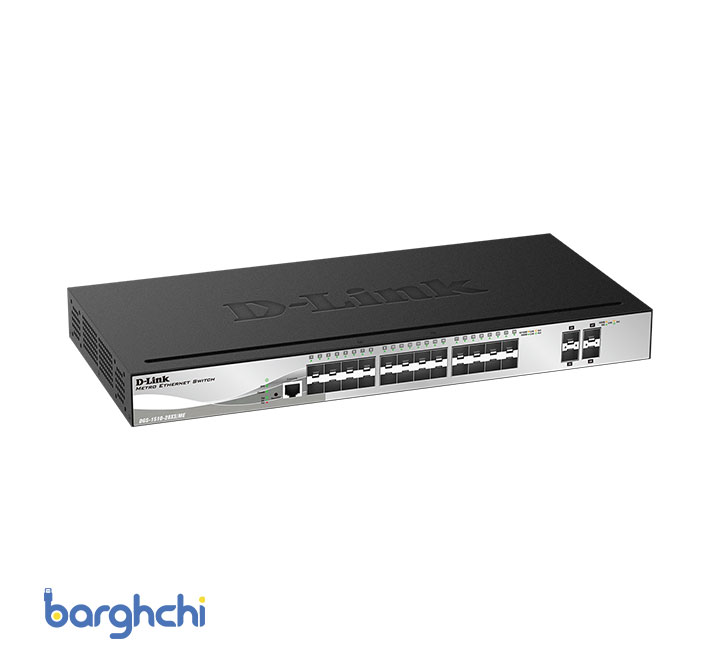

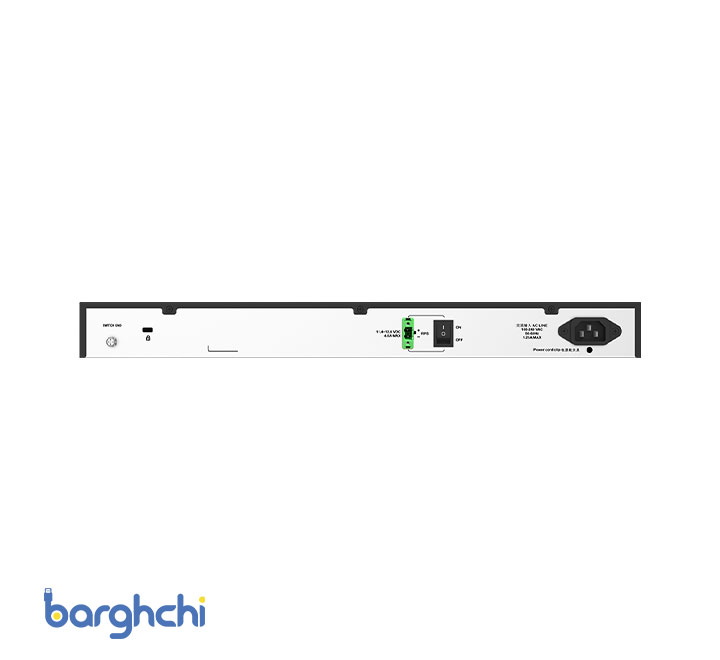

معرفی سوئیچ هوشمند D-link مدل DGS-1510-28XS/ME
| مشخصات محصول | مشخصات محصول | جزییات |
|---|---|---|
| ویژگی‌های سخت‌افزاری | لایه |
L2 + |
| رابط ها |
24 SFP, 4 10G SFP+ |
|
| تعداد پورت LAN |
28 |
|
| 10/100/1000 Base-T Ports |
24 |
|
| PoE |
ندارد |
|
| منبع تغذیه |
AC Input: 100 to 240 VAC 50/60 Hz |
|
| فن |
دو فن هوشمند |
|
| ابعاد(طول*عرض*ارتفاع)(میلی متر) |
440x210x44 |
|
| نشانگر LED |
Console (per device), Fan Error, Link/Activity/Speed (per port), Per device: Power, Redundant Power Supply (RPS) (per device) |
|
| داخل رک |
دارد |
|
| PoE plus | PoE plus |
ندارد |
| ویژگی های نرم افزاری | استانداردهای پورت |
IEEE 802.3 10BASE-T Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3ae 10 GbE, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3x Flow Control for Full-Duplex Mode, Auto-negotiation |
| نوع سوئیچ |
مدیریتی |
|
| ظرفیت سوئیچ |
128 Gbps |
|
| فایروال و امنیت دسترسی |
ARP Inspection, ARP Spoofing Prevention, BPDU Attack Protection, Broadcast/Multicast/Unknown Unicast Storm Control, D-Link Safeguard Engine, DHCP Server Screening, DHCP Snooping, DHCPv6 Guard1, DHCPv6 Snooping1, DoS Attack Prevention, IP Inspection, IPv6 ND Inspection1, IPv6 ND Snooping1, IPv6 Route Advertisement (RA) Guard1, L3 Control Packet Filtering, NetBIOS/NetBEUI Filtering, P-MAC-Port Binding (IMPB), Port Security – Supports up to 64 MAC addresses per port, SSH v1/v2, SSL v1/v2/v3, Traffic Segmentation |
|
| مدیریت |
System Log, 802.1AB LLDP – LLDP-MED, BootP/DHCP Client (Supports IPv4), Command Line Interface (CLI), Command Logging, CPU Monitoring, D-Link Network Assistant1, Debug command, DHCP Auto Configuration1, DHCP Client Option 12, DHCP Relay (Supports IPv4), DHCP Relay Option 60, 61 and 82, Flash File System, Memory Monitoring, Microsoft® NLB (Network Load Balancing) Support (Supports IPv4), Multiple Images, Password Encryption, Password Recovery, Ping, PPPoE Circuit-ID Tag Insertion1, RMONv1, RMONv2, sFlow1, SMTP (IPv4), SNMP Trap, SNMP v1/v2c/v3 (Supports IPv4), SNTP (Supports IPv4), Supports 1,2,3,9 groups, Supports Probe Config group, Telnet Server/Client (Supports IPv4), TFTP/FTP Client (Supports IPv4), Traceroute, Web-based GUI (Supports IPv4/v6), Zero Touch Provisioning (ZTP), ZModem |
|
| VLAN |
802.1Q Tagged VLAN, 802.1v Protocol VLAN, Double VLAN (Q-in-Q), GVRP, ISM VLAN, MAC-based VLAN, max. 255 dynamic VLANs, Max. 4094 VIDs, Port-based Q-in-Q, Port-based VLAN, VLAN Group, VLAN Translation, VLAN Trunking |
|
| عملکردهای لایه 3 |
16 IP interfaces, 32 IPv6 Static Route Entries, Default Route, Gratuitous ARP, IPv6 Neighbor Discovery (ND), Max. 1024 ARP entries, Max. 64 IPv4 entries, Static Route, Supports 255 static ARP entries |
|
| کیفیت خدمات (QOS) | Number of Queues per port |
8 |
| Priority Queue Mapping based on DSCP |
دارد |
|
| Weighted Round Robin (WRR) |
دارد |
|
| عملکرد | MAC-address table |
16K |
| عملکردهای لایه 2 |
802.1D STP, 802.1w RSTP Loopback Detection 802.3ad Link Aggregation, 802.3x Flow Control, BPDU Filtering, Filters all unregistered groups Spanning Tree Protocol, Flow Control, Forwards all unregistered groups, HOL Blocking Prevention, Jumbo Frames up to 9216 Byte, Link Aggregation:Compliant with 802.1AX and 802.3ad, Loopback Detection, Many-to-One, One-to-One, Port Mirroring, Root Restriction, Supports 1 Mirroring group, Supports Mirroring for Tx/Rx/Both Cable Diagnostics Configurable MDI/MDIX |
|
| سایر ویژگی‌ها | گواهی نامه ها |
BSMI, C-Tick, CB, CE, cul, FCC, VCCI |
| پشتیبانی از D-LINK Green |
ندارد |
|
| گارانتی | گارانتی |
2 سال گارانتی ایزی |
