سوئیچ 12 پورت سیسکو مدل WS-C3850-12S-S

0 (0) |0 دیدگاه کاربران
برند:

ویژگی‌های سوئیچ سیسکو WS-C3850-12S-S:

  • برند: سیسکو
  • کد محصول: WS-C3850-12S-S
  • پورت: 12 پورت SFP اترنت
  • قابلیت برنامه‌ریزی و مدیریت: دارد
  • 1 سال گارانتی
شناسه محصول : WS-C3850-12S-S
سریعترین ارسال: سه شنبه 9 آذر

موجودی استعلام شود

قیمت :65,000,000 تومان

برای خرید محصولاتی که امکان فروش آنلاین ندارند میتوانید از طریق لینک های بالا اقدام به خرید کنید

سوئیچ 12 پورت سیسکو مدل WS-C3850-12S-S

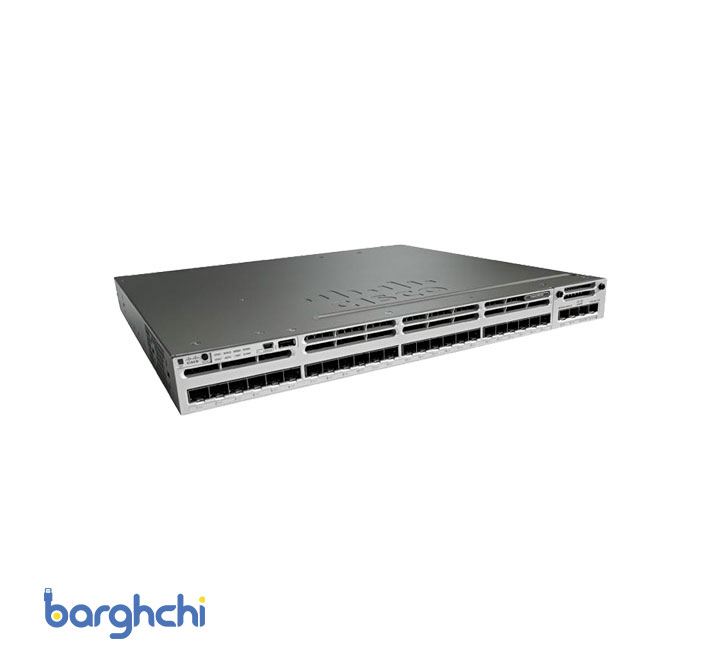

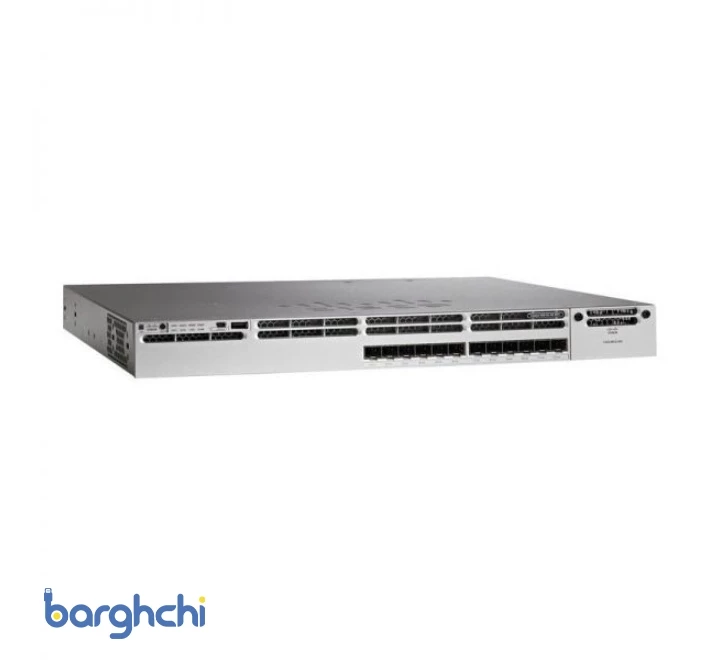

شکل 1 : ظاهر سوئیچ شبکه 12 پورت سیسکو

سوئیچ 12 پورت سیسکو مدل WS-C3850-12S-S

نگاه اجمالی
کد محصول WS-C3850-12S-S
نوع محفظه 1 RU
ویژگی کلی IP Base
Network SFP uplink module selection

C850-NM-4-1G

C3850-NM-2-10G

پورت 12 ports of SFP Ethernet fiber connection with Flexible Netflow feature
Maximum stacking number 9
Stack bandwidth 480Gbps
Forwarding Performance 68.4Mpps
Switching Capacity 68Gbps
رم 4 G
فلش مموری 2 G
Number of AP per switch/stack 100
Number of wireless clients per switch/stack 2000
ابعاد 44.5 cm x 45.0 cm x 4.45 cm
وزن بسته 17.49 Kg

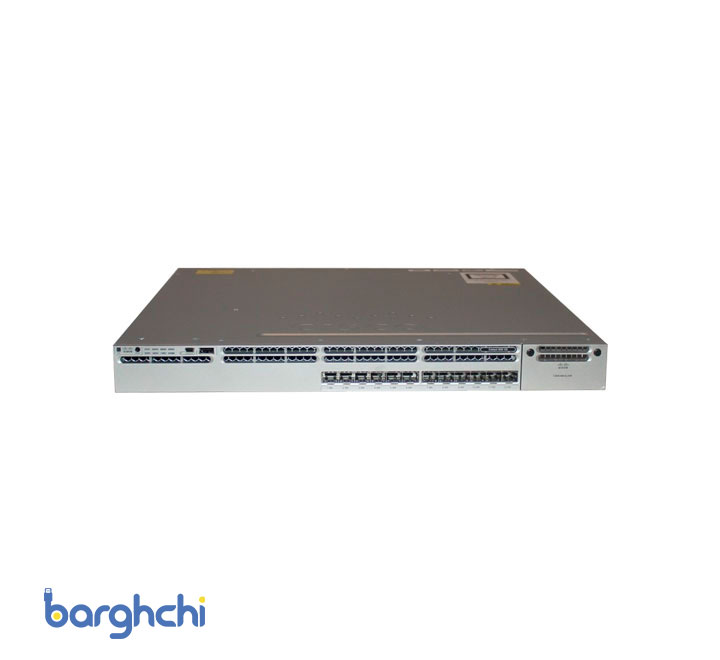

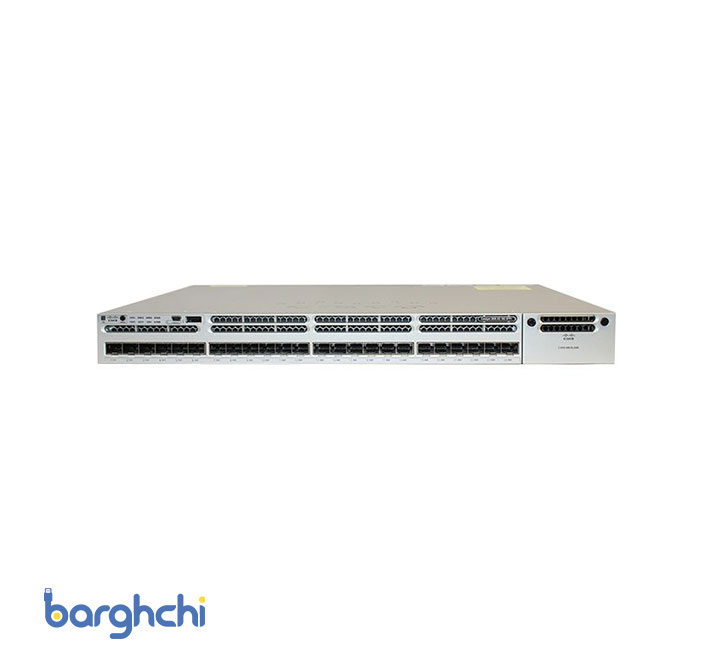

شکل ۲ : سوئیچ از روبرو

سوئیچ 12 پورت سیسکو مدل WS-C3850-12S-S

Note:
① UID (blue beacon)
② Mode button
③ Status LEDs
④ USB mini-Type B (console) port
⑤ USB Type A storage port
⑥ 12 ports of SFP
⑦ Network SFP uplink module slot
The status LEDs include STAT (status), DUPLX (duplex), SPEED, STACK, SYST (system), ACTV (active) and S-PWR (Stack Power).
The switch supports one hot-swappable network module that provides uplink ports to connect to other devices. The switch should only be operated with either a network module or a blank module installed.

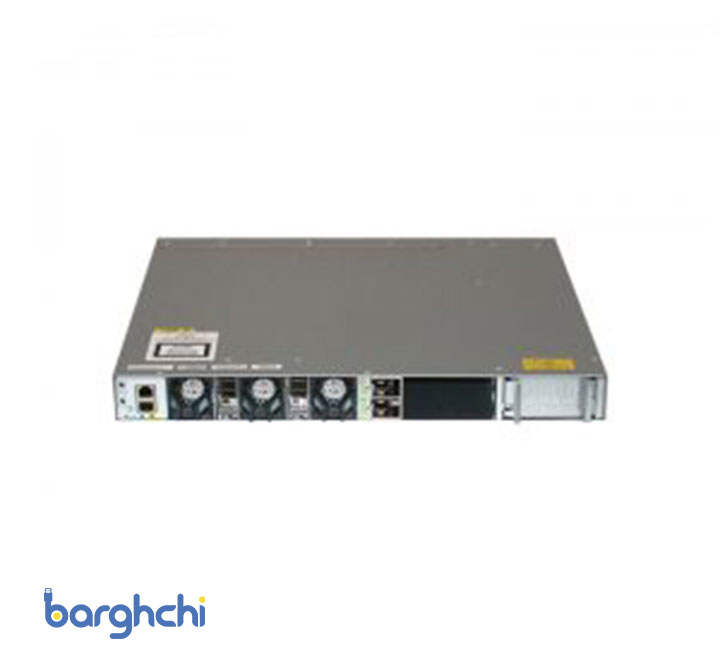

شکل ۳ : سوئیچ از پشت

سوئیچ 12 پورت سیسکو مدل WS-C3850-12S-S

Note:
① Ground connector
② CONSOLE (RJ-45 console port)
③ Fan module
④ MGMT port
⑤ StackWise port connector
⑥ StackPower connector
⑦ Power supply modules

شکل 4 :
سوییچ شبکه 1سوئیچ 12 پورت سیسکو مدل WS-C3850-12S-S2 پورت سیسکو مدل WS-C3850-12S-S

Figure 4 shows the StackWise-480 and StackPower connectors.
In order to stacking with LAN base feature set, WS-C3850-12S-S needs to configure in LAN base mode from CLI.

شکل 5 : تصویر آنباکسینگ سوییچ WS-C3850-12S-S

سوئیچ 12 پورت سیسکو مدل WS-C3850-12S-S

تجهیزات جانبی

Table 2 shows some recommended modules,licenses and accessories of this switch.

مدل توضیحات
C3850-NM-4-1G Cisco 3850 Series 4 x 1GE Network Module
C3850-NM-2-10G Cisco 3850 Series 2 x 10GE Network Module
L-C3850-12-S-E= C3850-12 IP Base to IP Services Electronic RTU License
PWR-C1-350WAC Cisco 3850 Series Power Supply 350W AC
PWR-C1-350WAC/2 Cisco 3850 Series Secondary Power Supply 350W AC Config 1 Secondary Power Supply
STACK-T1-50CM= Cisco StackWise-480 50cm stacking cable for Cisco Catalyst 3850 series switch
STACK-T1-1M= Cisco StackWise-480 1m stacking cable for Cisco Catalyst 3850 series switch

 دریافت اطلاعات بیشتر
آیا در مورد سوئیچ 12 پورت سیسکو مدل WS-C3850-12S-S سوالی دارید؟
اگر می‌خواهید درباره این سوئیچ شبکه بیشتر بدانید اکنون از طریق Live Chat یا sales@barghchi.com با ما تماس بگیرید.

ارزش خرید از دیدگاه فروشنده
  • ارزش خرید در برابر قیمت
  • امکانات و قابلیت ها
  • طراحی و کیفیت ساخت
نوع سوئیچ

مدیریتی, فیبر نوری, بی سیم

enclosure type

Rack-mountable – 1U

Network management Interface

Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling, Management console port: RJ-45-to-DB9 cable for PC connections

Available PoE Power

None

Switching Capacity

68Gbps

Max Number of Stacks

9

Stack Bandwidth

480Gbps

Forwarding Performance

68.4Mpps

FNF entries

48,000 flows

Maximum VLANs IDs

1,000

MAC Address Table Size

32K

CPU

Multicore CPU

ظرفیت حافظه رم

4 G

Flash Memory

2 G

Number of AP per switch/stack

100

Number of wireless clients per switch/stack

2000

Total number of WLANs per switch

64

Wireless bandwidth per switch

up to 20Gbps

Supported Aironet AP series

1040, 1140, 1260, 1600, 2600, 3500, 3600

Console ports

USB (Type-B), Ethernet (RJ-45)

Expansion Slots

1 network module slot and 1 power redundant slot

Network Modules Selection

C3850-NM-2-10G: 2 x 10G or 4 x 1G uplinks network module, C3850-NM-4-1G: 4 x 1G uplinks network module

Stacking cable

STACK-T1-1M StackWise stacking cable with a 1.0 m length, STACK-T1-3M StackWise stacking cable with a 3.0 m length, STACK-T1-50CM StackWise stacking cable with a 0.5 m length

(Stack Power Cable (recommended

CAB-SPWR-150CM stack power cable with a 150CM length, CAB-SPWR-30CM stack power cable with a 30CM length

Power supply

PWR-C1-350WAC

Power Device

plug-in module, Power supply, redundant

Power Redundancy

Optional

(Voltage range (Auto

110V-240V

(Power Consumption of standalone(in Watts

109.75 (Max)

Rack Mounting Kit

Optional

MTBF

315,840 (hours)

Compliant Standards

IEEE 802.11, IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.1X-Rev, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, RMON I and II standards, SNMP v1, v2c, and v3

System software

IOS IP Base (Upgradable)

EnergyWise license

ENERGY-MGMT, ENERGY-MGT-100-K9

Software license

C3850-12-S-E: IP Base to IP Services RTU paper license, L-C3850-12-S-E: IP Base to IP Services RTU electronic license

Access Point Licenses

L-LIC-CT3850-UPG: Primary upgrade license SKU for Cisco 3850 wireless controller (e-delivery), L-LIC-CTIOS-1A: 1 access point adder license for Cisco IOS Software based wireless controller (e-delivery), LIC-CT3850-UPG: Primary upgrade license SKU for Cisco 3850 wireless controller (paper license), LIC-CTIOS-1A: 1 access point adder license for the Cisco IOS Software based wireless controller (paper license)

Advanced Network security

Bidirectional data support on a SPAN, Bridge protocol data unit (BPDU) Guard, Cisco security VLAN ACL, Cisco standard and extended IP security router ACLs, complete identity and security, DHCP snooping, Dynamic ARP inspection (DAI), IEEE 802.1ae, IGMP filtering, IP source guard, MAC address notification, Multidomain authentication, Port security, Port-based ACLs, Private VLAN, Router and VLAN ACLs, Secure Shell (SSH) Protocol, Kerberos, and Simple Network Management Protocol Version 3 (SNMPv3), Spanning Tree Root Guard (STRG), TACACS+ and RADIUS authentication, The Unicast Reverse Path Forwarding (uRPF), TrustSec SXP, User authentication, Wireless end-to-end security

Technical Support and Services

Cisco Focused Technical Support Services, Cisco Smart Foundation Service, Cisco SMARTnet Service, Cisco SP Base Service

Storage environment

-40ºF to 160ºF (-40ºC to 70ºC)

Operating altitude

Up to 13,000 Feet (Up to 4000 Meters)

Storage altitude

Up to 15,000 Feet (Up to 4573 Meters)

Operating relative humidity

10% to 95% noncondensing

Storage relative humidity

10% to 95% noncondensing

Management

●CISCO-STP-EXTENSIONS-MIB, AIRESPMACE-WIRELESS-MIB, BRIDGE-MIB, CISCO-AUTH-FRAMEWORK-MIB, CISCO-BGP4-MIB, BGP4-MIB, CISCO-BRIDGE-EXT-MIB, CISCO-BULK-FILE-MIB, CISCO-CABLE-DIAG-MIB, CISCO-CALLHOME-MIB, CISCO-CDP-MIB, CISCO-CEF-MIB, CISCO-CIRCUIT-INTERFACE-MIB, CISCO-CONFIG-COPY-MIB, CISCO-CONFIG-MAN-MIB, CISCO-CONTEXT-MAPPING-MIB, CISCO-DEVICE-LOCATION-MIB, CISCO-DHCP-SNOOPING-MIB, CISCO-EIGRP-MIB, CISCO-EMBEDDED-EVENT-MGR-MIB, CISCO-ENTITY-FRU-CONTROL-MIB, CISCO-ENTITY-SENSOR-MIB, CISCO-ENTITY-VENDORTYPE-OID-MIB, CISCO-ERR-DISABLE-MIB, CISCO-FLASH-MIB, CISCO-FLOW-MONITOR-MIB, CISCO-FTP-CLIENT-MIB, CISCO-HSRP-EXT-MIB, CISCO-HSRP-MIB, CISCO-IETF-ISIS-MIB, CISCO-IF-EXTENSION-MIB, CISCO-IGMP-FILTER-MIB, CISCO-IMAGE-MIB, CISCO-IP-CBR-METRICS-MIB, CISCO-IP-STAT-MIB, CISCO-IP-URPF-MIB, CISCO-IPMROUTE-MIB, CISCO-L2L3-INTERFACE-CONFIG-MIB, CISCO-LAG-MIB, CISCO-LICENSE-MGMT-MIB, CISCO-LWAPP-AP-MIB, CISCO-LWAPP-CCX-RM-MIB, CISCO-LWAPP-CLIENT-ROAMING-MIB, CISCO-LWAPP-DOT11-CCX-CLIENT-DIAG-MIB, CISCO-LWAPP-DOT11-CCX-CLIENT-MIB, CISCO-LWAPP-DOT11-CLIENT-CCX-REPORTS-MIB, CISCO-LWAPP-DOT11-CLIENT-MIB, CISCO-LWAPP-DOT11-MIB, CISCO-LWAPP-DOWNLOAD-MIB, CISCO-LWAPP-IDS-MIB, CISCO-LWAPP-LINKTEST-MIB, CISCO-LWAPP-MFP-MIB, CISCO-LWAPP-MOBILITY-EXT-MIB, CISCO-LWAPP-QOS-MIB, CISCO-LWAPP-REAP-MIB, CISCO-LWAPP-ROGUE-MIB, CISCO-LWAPP-RRM-MIB, CISCO-LWAPP-SI-MIB, CISCO-LWAPP-TSM-MIB, CISCO-LWAPP-WLAN-MIB, CISCO-LWAPP-WLAN-SECURITY-MIB, CISCO-MAC-AUTH-BYPASS-MIB, CISCO-MAC-NOTIFICATION-MIB, CISCO-MDI-METRICS-MIB, CISCO-MEMORY-POOL-MIB, CISCO-OSPF-MIB, CISCO-OSPF-TRAP-MIB, CISCO-PAE-MIB, CISCO-PAGP-MIB, CISCO-PIM-MIB, CISCO-PING-MIB, CISCO-PORT-QOS-MIB, CISCO-PORT-SECURITY-MIB, CISCO-PORT-STORM-CONTROL-MIB, CISCO-POWER-ETHERNET-EXT-MIB, CISCO-PRIVATE-VLAN-MIB, CISCO-PROCESS-MIB, CISCO-PRODUCTS-MIB, CISCO-RF-MIB, CISCO-RTP-METRICS-MIB, CISCO-RTTMON-MIB, CISCO-SMART-INSTALL-MIB, CISCO-SNMP-TARGET-EXT-MIB, CISCO-STACKMAKER-MIB, CISCO-STACKWISE-MIB, CISCO-SYSLOG-MIB, CISCO-TC-MIB, CISCO-UDLDP-MIB, CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB, CISCO-VLAN-MEMBERSHIP-MIB, CISCO-VTP-MIB, ENTITY-MIB, EtherLike-MIB, HC-RMON-MIB, IEEE8021-PAE-MIB, IEEE8023-LAG-MIB, IF-MIB, IGMP-MIB, IGMP-STD-MIB, IP-FORWARD-MIB, IP-MIB, IPMROUTE-STD-MIB, LLDP-EXT-MED-MIB, LLDP-MIB, NOTIFICATION-LOG-MIB, OLD-CISCO-MEMORY-MIB, POWER-ETHERNET-MIB, RMON-MIB, RMON2-MIB, SNMP-COMMUNITY-MIB, SNMP-FRAMEWORK-MIB, SNMP-MPD-MIB, SNMP-NOTIFICATION-MIB, SNMP-PROXY-MIB, SNMP-TARGET-MIB, SNMP-USM-MIB, SNMP-VIEW-BASED-ACM-MIB, SNMPv2-MIB, TCP-MIB, UDP-MIB

ویژگی ها

802.1p queues, 802.1W/802.1S, 802.3ad LACP and PAgP, ACL Classification, Auto QoS, CDPv2, Class & Policy Maps, Configure Buffers and Thresholds, Configure CoS Priority Queues, Configure Queue Weights, DHCP server, DSCP transparency, Dynamic Trunking Protocol (DTP), Flexible Netflow, HSRP, VRRP, BLGP, IGMPv1,v2,v3 and MLDv1, v2, ingress Policing, Jumbo Frames, LLDP, Modify CoS and DSCP Mapping, Per VLAN policies, PIM-SM/DM, PIM sparse-dense mode, SSM, port CoS Trust and Override, Port Fast/Uplink Fast, Priority Queuing, PVST/PVST+, RIPv1, v2 EIGRP, PIM OSPF, OSPFv3, EIGRPv6, BGPv4, IS-ISv4, RPS Support, Scheduling, Trusted Boundary, VLANS, Voice Vlan, VRF-lite, VTPv2, Weighted Tail Drop

ابعاد

4.45 Cm Height x 44.5 Cm Width x 45.0 Cm Depth

وزن(تقریبی)

15.48 Pounds (7.02 Kg)

تعداد پورت SFP

12 عدد

DRAM

4G

PoE

ندارد

سرعت پهنای باند

68 گیگابیت بر ثانیه

قابلیت استک شدن

دارد

سرعت پهنای باند وایرلس

20 گیگابیت بر ثانیه
