سوئیچ 24 پورت سیسکو مدل WS-C2960X-24TS-L
مشخصات این سوئیچ شبکه که یکی از مدلهای سوئیچ شبکه سیسکو میباشد به شرح زیر میباشد: سوئیچ 24 پورت سیسکو مدل WS-C2960X-24TS-L

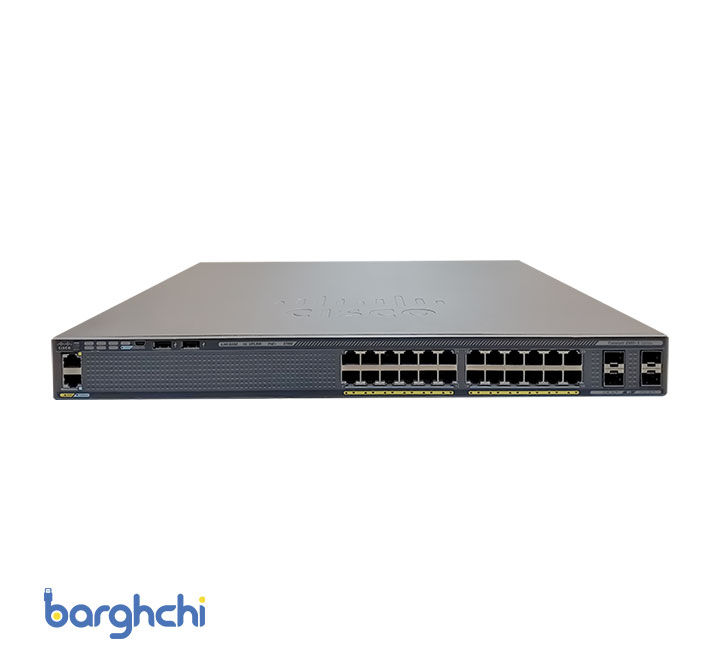

شکل 1 : ظاهر سوئیچ سیسکو
بررسی سوئیچ 24 پورت سیسکو مدل WS-C2960X-24TS-L
نگاه اجمالی | |
کد محصول | WS-C2960X-24TS-L |
نوع محفظه | U1/قابل نصب روی رک |
ویژگی کلی | LAN Base |
رابط های Uplink | 4 x 1G SFP |
پورت | 24 x Ethernet 10/100/1000 Gigabit ports |
Maximum stacking number | 8 |
Stack bandwidth | 80G |
Forwarding Bandwidth | 108Gbps |
Switching Bandwidth | 216Gbps |
رم | 512MB |
فلش مموری | 128MB |
ابعاد | 44.5 cm x 27.9 cm x 4.5 cm |
وزن | 9.19 Kg |

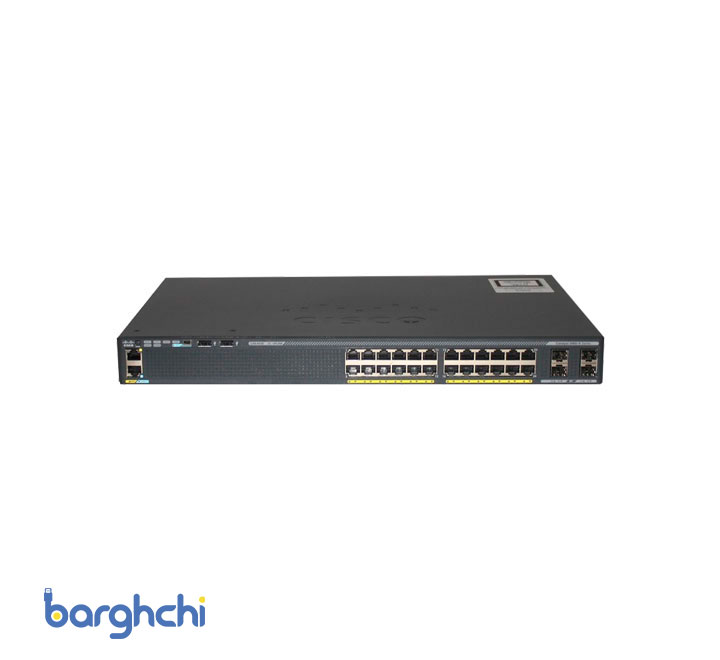

شکل ۲ : سوئیچ از روبرو
Note:
①Ethernet management port
②Mode button
③Switch LEDs
④USB mini-Type B (console) port
⑤USB Type A ports
⑥24*10/100/1000 ports
⑦SFP module ports
⑧CONSOLE LED
⑨ MGMT LED
⑩ RJ-45 console port
The Switch LEDs include SYST, STAT, SPEED, RPS, MAST, and STACK LEDs.

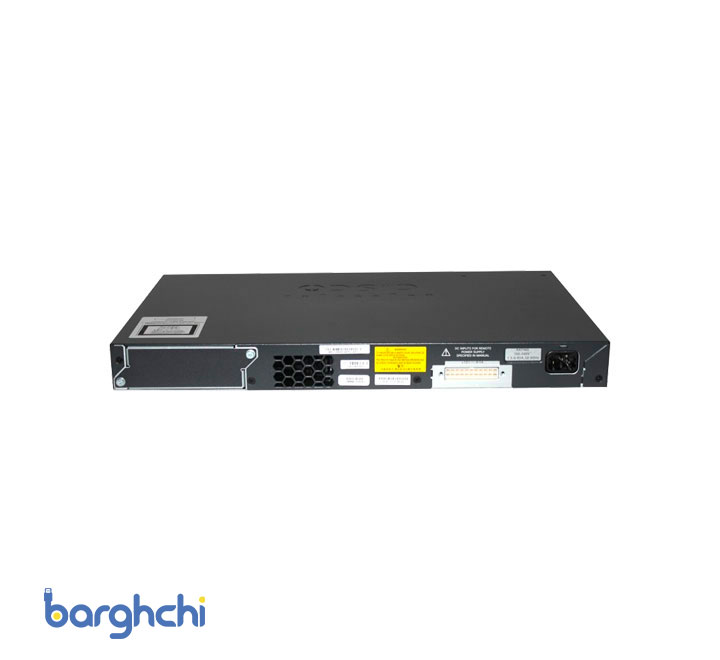

شکل ۳ : سوئیچ از پشت
Note:
①FlexStack-Plus module slot and cove
②Fan Exhaust
③RPS Connector
④AC power connector
شکل 4 :
Figure 4 shows the stackable capacity.
This C2960X switch delivers stackable capacity that supports up to 8 switches stacking with same 2960-X LAN base series. It also can stack up to 4 switches stacking when mixed with 2960-S LAN base series switches.
تجهیزات جانبی سوئیچ 24 پورت سیسکو مدل WS-C2960X-24TS-L
مدل |
توضیحات |
C2960X-STACK |
Catalyst 2960-X FlexStack Plus Stacking Module |
CAB-STK-E-0.5M |
Cisco FlexStack Stacking Cables |
GLC-LH-SMD |
Cisco GLC-LH-SMD 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM |
GLC-SX-MMD |
1000BASE-SX SFP transceiver module, MMF, 850nm, DOM |
CAB-CONSOLE-RJ45 | Console Cable 6ft with RJ45 and DB9F |
CAB-CONSOLE-USB |
Console Cable 6 ft with USB Type A and mini-B |
