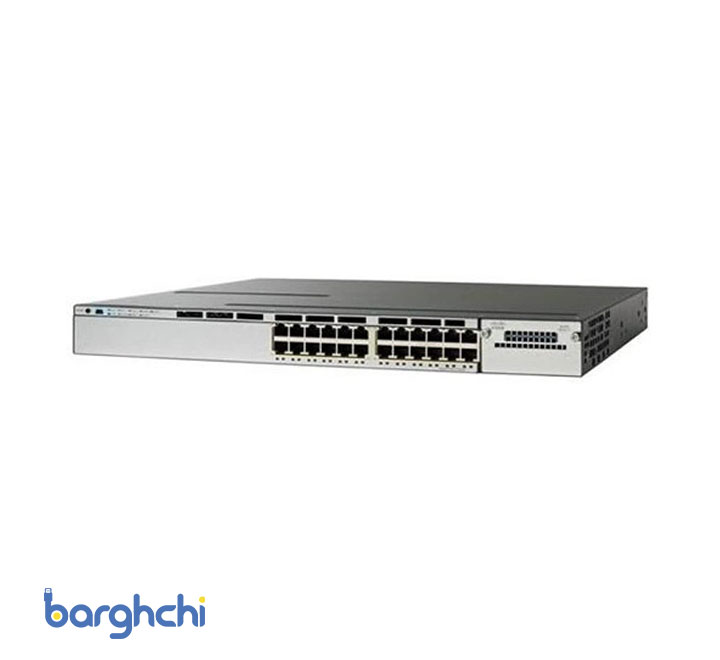

سوئیچ شبکه 24 پورت سیسکو مدل WS-C3750X-24P-S
– Stackable 24 10/100/1000 Ethernet ports
– Four optional uplink network modules with GE or 10GE ports
– Industry first PoE+ with 30W power on all ports in 1 rack unit (RU) form factor
– Dual redundant, modular power supplies and fans
– Media Access Control Security (MACsec) hardware-based encryption
– Flexible NetFlow and switch-to-switch hardware encryption with the Service Module uplink
– USB Type-A and Type-B ports for storage and console respectively and an out-of-band Ethernet management port
– StackWise Plus
– Cisco StackPowerTM technology: An innovative feature and industry first for sharing power among stack members
– Cisco StackWise Plus technology for ease of use and resiliency with 64 Gbps of throughput
– Investment protection with backward compatibility with all other models of Cisco Catalyst 3750 Series Switches
Cisco Catalyst 3750-X Series Switches support 4 optional network modules for uplink ports (Figure 1);The default switch configuration doesn’t include the uplink module;
When purchasing switch, customers have flexibility to choose any group of network modules described below:
| توضیحات محصول | Product Number |
| Four GbE port network module | C3KX-NM-1G |
| Two 10GbE SFP+ ports network module with four physical ports with two SFP+ and two regular SFP ports | C3KX-NM-10G |
| Two 10GB-T ports network module | C3KX-NM-10GT |
| Service Module with two 10GbE SFP+ ports network module for Netflow and MACsec encryption | C3KX-SM-10G |
Dual Redundant Modular Power Supplies
Cisco Catalyst 3750-X Series and 3560-X Series Switches support dual redundant power supplies (Figure 2);
One power supply is shipped with the switch by default;
Other power supply/suppliers can be purchased when ordering the switch or next time according to your needs.
If only one power supply is installed, it should always be in the power supply bay 1.
Table below shows the different power supplies available in these switches and available PoE power.
Power Supply Models
| Default Power Supply | Available PoE Power | مدل |
| C3KX-PWR-350WAC | – | 24 Port Data Switch |
| 48 Port Data Switch | ||
| C3KX-PWR-715WAC | 435W | 24 Port PoE Switch |
| 48 Port PoE Switch | ||
| C3KX-PWR-1100WAC | 800W | 48 Port Full PoE Switch |
| C3KX-PWR-1100WAC | 800W | 24 Port UPOE Switch |
| 48 Port UPOE Switch |
Cisco Catalyst 3750-X Series Switch WS-C3750X-24P-S is an enterprise-class lines of stackable and standalone switches, respectively. Catalyst 3750-X switches provide high availability, scalability, security, energy efficiency, and ease of operation with innovative features such as Cisco StackPower, IEEE 802.3at Power over Ethernet Plus (PoE+) configurations, optional network modules, redundant power supplies, and Media Access Control Security (MACsec) features. Cisco Catalyst 3750-X Series with StackWise Plus technology provides scalability, ease of management and investment protection for the evolving business needs. The Cisco Catalyst 3750-X switches enhance productivity by enabling applications such as IP telephony, wireless, and video for borderless network experience.
