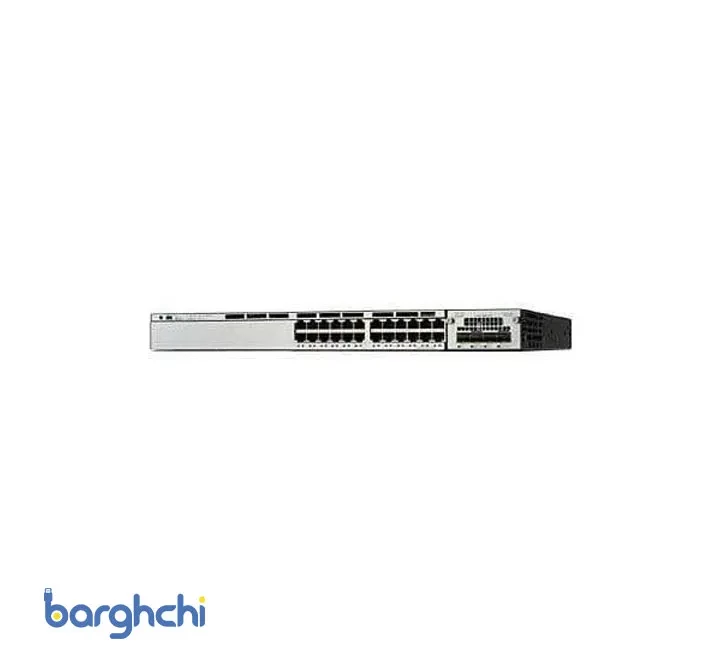

سوئیچ 24 پورت سیسکو مدل WS-C3750X-24T-S

برند:

ویژگی‌های سوئیچ سیسکو WS-C3750X-24T-S:

  • برند: سیسکو
  • کدمحصول: WS-C3750X-24T-S
  • پورت: 24 پورت 10/100/1000 اترنت
  • قابلیت برنامه‌ریزی و مدیریت: دارد
  • 1 سال گارانتی
شناسه محصول : WS-C3750X-24T-S
سریعترین ارسال: شنبه 2 بهمن

موجودی استعلام شود

قیمت کالا

38%

5,300,000 تومان

برای خرید محصولاتی که امکان فروش آنلاین ندارند میتوانید از طریق لینک های بالا اقدام به خرید کنید

سوئیچ 24 پورت سیسکو مدل WS-C3750X-24T-S

مشخصات این سوئیچ شبکه که یکی از مدلهای سوئیچ شبکه سیسکو می‌باشد به شرح زیر است:

– Stackable 24 10/100/1000 Ethernet ports
– Stackwise plus technology with total 64G stacking bandwidth
– Four optional uplink network modules with GE or 10GE ports
– Dual redundant, modular power supplies and fans
– Media Access Control Security (MACsec) hardware-based encryption
– Flexible NetFlow and switch-to-switch hardware encryption with the Service Module uplink
– USB Type-A and Type-B ports for storage and console respectively and an out-of-band Ethernet management port
– StackWise Plus
Cisco StackPowerTM technology: An innovative feature and industry first for sharing power among stack members
– Cisco StackWise Plus technology for ease of use and resiliency with 64 Gbps of throughput
– Investment protection with backward compatibility with all other models of Cisco Catalyst 3750 Series Switches

سوئیچ 24 پورت سیسکو مدل WS-C3750X-24T-S

Figure 1
Cisco Catalyst 3750-X Series Switches support 4 optional network modules for uplink ports (Figure 1);
The default switch configuration doesn’t include the uplink module;

When purchasing switch, customers have flexibility to choose any group of network modules described below:

توضیحات محصول Product Number
Four GbE port network module C3KX-NM-1G
Two 10GbE SFP+ ports network module with four physical ports with two SFP+ and two regular SFP ports C3KX-NM-10G
Two 10GB-T ports network module C3KX-NM-10GT
Service Module with two 10GbE SFP+ ports network module for Netflow and MACsec encryption C3KX-SM-10G

سوئیچ 24 پورت سیسکو مدل WS-C3750X-24T-S

Dual Redundant Modular Power Supplies
Cisco Catalyst 3750-X Series and 3560-X Series Switches support dual redundant power supplies (Figure 2);
One power supply is shipped with the switch by default;
Other power supply/suppliers can be purchased when ordering the switch or next time according to your needs.
If only one power supply is installed, it should always be in the power supply bay 1.
Table below shows the different power supplies available in these switches and available PoE power.
Power Supply Models

Default Power Supply Available PoE Power مدل
C3KX-PWR-350WAC 24 Port Data Switch
48 Port Data Switch
C3KX-PWR-715WAC 435W 24 Port PoE Switch
48 Port PoE Switch
C3KX-PWR-1100WAC 800W 48 Port Full PoE Switch
C3KX-PWR-1100WAC 800W 24 Port UPOE Switch
48 Port UPOE Switch

Cisco Catalyst 3750-X Series Switch WS-C3750X-24T-S is an enterprise-class lines of stackable and standalone switches, respectively. Catalyst 3750-X switches provide high availability, scalability, security, energy efficiency, and ease of operation with innovative features such as Cisco StackPower, IEEE 802.3at Power over Ethernet Plus (PoE+) configurations, optional network modules, redundant power supplies, and Media Access Control Security (MACsec) features. Cisco Catalyst 3750-X Series with StackWise Plus technology provides scalability, ease of management and investment protection for the evolving business needs. The Cisco Catalyst 3750-X switches enhance productivity by enabling applications such as IP telephony, wireless, and video for borderless network experience.

ارزش خرید از دیدگاه فروشنده
    نوع سوئیچ

    مدیریتی

    تعداد پورت شبکه

    24 پورت

    پورت های رابط

    10/100/1000

    Manufacturer Part Number

    WS-C3750X-24T-S Catalyst 3750-X Switch

    نوع محصول

    Managed, Stackable 24 ports L3 Switch

    Form Factor

    Fixed, Rack Mountable 1U, Standalone/Clustering

    Max Number of Stacks

    9

    Routing Protocol

    HSRP, RIP-1, RIP-2, RIPng, static IP routing

    Remote Management Protocol

    CLI, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2, SNMP 2c, SNMP 3, SSH, Telnet, TFTP

    Authentication Method

    Kerberos, RADIUS, Secure Shell (SSH), TACACS+

    Compliant Standards

    IEEE 802.1ae, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

    DRAM Memory

    256 MB

    Flash Memory

    128 MB

    LED Status Lights Indicators

    Link activity, port duplex mode, Port status, port transmission speed, power, system

    رابط ها

    1 x 10Base-T/100Base-TX – RJ-45 – management, 1 x console – mini-USB Type B – management, 1 x RS-232 – RJ-45 – management, 24 x 10Base-T/100Base-TX/1000Base-T – RJ-45, Network stack device : 2 x, USB : 1 x 4 PIN USB Type A

    Expansion Slots

    1 (total) / 1 (free) x Expansion Slot

    Power Device

    plug-in module, Power supply, redundant

    Installed Qty

    1 (installed) / 2 (max)

    Power Redundancy

    Optional

    Power Redundancy Scheme

    1+1 (with optional power supply)

    ولتاژ موردنیاز

    AC 120/230 V ( 50/60 Hz )

    Rack Mounting Kit

    Optional

    MTBF

    189,704 hour(s)

    Software Included

    Cisco IOS IP Base

    Service & Support

    Limited lifetime warranty

    Service & Support Details

    Limited warranty – lifetime, Limited warranty – power supply and fans – 5 years, New releases update

    ابعاد

    4.5 cm Height x 44.5 cm Width x 46 cm Depth

    وزن(تقریبی)

    7.1 kg

    قابلیت استک شدن

    دارد

    DRAM

    256MB
