سوئیچ 24 پورت سیسکو مدل WS-C3850-24XS-S

0 (0) |0 دیدگاه کاربران
برند:

ویژگی‌های سوئیچ سیسکو WS-C3850-24XS-S:

  • برند: سیسکو
  • کد محصول: WS-C3850-24XS-S
  • پورت: 24 پورت 10/100/1000 SFP
  • قابلیت برنامه‌ریزی و مدیریت: دارد
  • 1 سال گارانتی
شناسه محصول : WS-C3850-24XS-S
سریعترین ارسال: سه شنبه 9 آذر

موجودی استعلام شود

قیمت :300,000,000 تومان

برای خرید محصولاتی که امکان فروش آنلاین ندارند میتوانید از طریق لینک های بالا اقدام به خرید کنید

سوئیچ 24 پورت سیسکو مدل WS-C3850-24XS-S

جدول 1 مشخصات سوئیچ WS-C3850-24XS-S را نشان می دهد.

نگاه اجمالی
کد محصول WS-C3850-24XS-S
نوع محفظه 1 RU
ویژگی کلی IP Base
Network SFP uplink module selection

C3850-NM-4-10G

C3850-NM-8-10G

C3850-NM-2-40G

پورت 24 × 10/100/1000 10G SFP+ Optical ports
Maximum stacking number 9
Stack bandwidth 480 Gpbs
رم 4 GB
فلش مموری 4 GB
ابعاد 44.5 cm x 45 cm x 4.45 cm

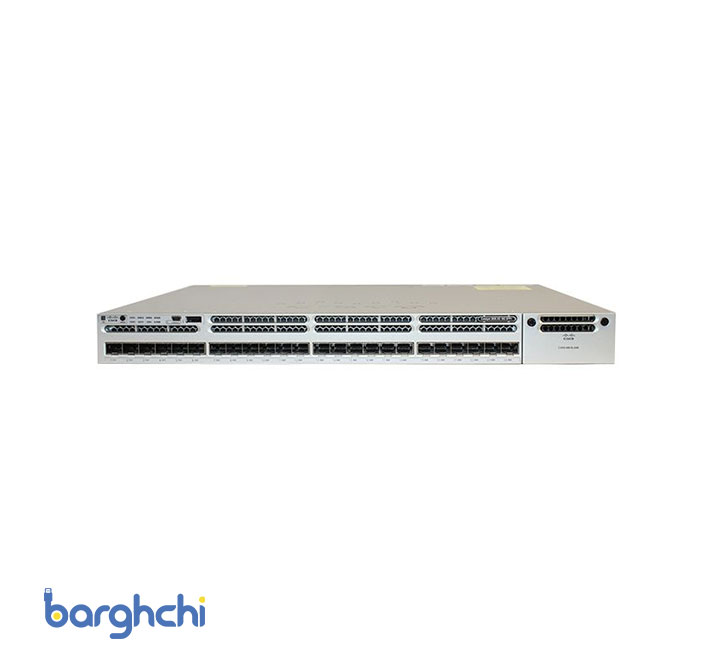

شکل 1 : سوئیچ از روبرو

سوئیچ 24 پورت سیسکو مدل WS-C3850-24XS-S
سوئیچ شبکه 24 پورت سیسکو مدل WS-C3850-24XS-S

There are 24 × 10/100/1000 10G SFP+ Optical ports on the front panel.
The switch supports one hot-swappable network module that provides uplink ports to connect to other devices. The switch should only be operated with either a network module or a blank module installed.

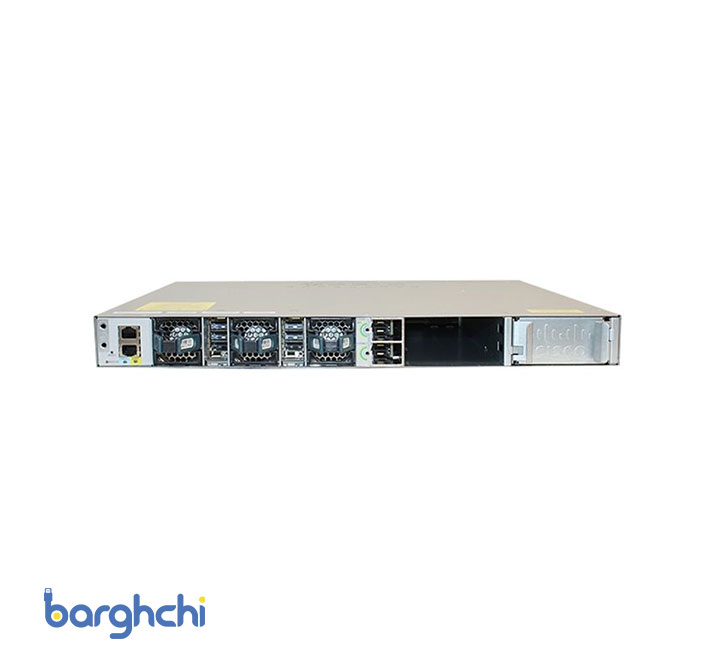

شکل 2 : سوئیچ از پشت

سوئیچ 24 پورت سیسکو مدل WS-C3850-24XS-S
سوئیچ شبکه 24 پورت سیسکو مدل WS-C3850-24XS-S

Note:
① Ground connector
② CONSOLE (RJ-45 console port)
③ StackWise port connector
④ StackPower connector
⑤ Power supply modules
⑥ Fan module
⑦ MGMT port
⑧ Reset Button

شکل 3 :

سوئیچ 24 پورت سیسکو مدل WS-C3850-24XS-S
سوئیچ شبکه 24 پورت سیسکو مدل WS-C3850-24XS-S

Figure 3 shows the StackWise-480 and StackPower connectors.
This switch with IP Base feature set can only stack with other Catalyst 3850 Series IP Base switches

تجهیزات جانبی

The Modules, Licenses and Accessories

مدل توضیحات
C3850-NM-4-10G Cisco 3850 Series Network Module C3850-NM-4-10G 4 x 10GE Network Module
C3850-NM-8-10G Cisco 3850 Series Network Module C3850-NM-8-10G 8 x 10GE Network Module
L-C3850-24-S-E C3850-24 IP Base to IP Services Electronic RTU License
PWR-C1-715WAC= Cisco 3850 Series Power Supply PWR-C1-715WAC 715W AC Config 1 Power Supply
STACK-T1-50CM= Cisco StackWise-480 50cm stacking cable for Cisco Catalyst 3850 series switch
STACK-T1-1M= Cisco StackWise-480 1m stacking cable for Cisco Catalyst 3850 series switch

مقایسه دو کالا مشابه

مدل WS-C3850-24S-S WS-C3850-24XS-S
ویژگی کلی IP Base IP Base

پورت

24 × 10/100/1000 SFP Optical ports

24 × 10/100/1000 10G SFP+ Optical ports

Network SFP uplink module selection

C3850-NM-4-1G

C3850-NM-2-10G

C3850-NM-4-10G

C3850-NM-8-10G

C3850-NM-2-40G

 دریافت اطلاعات بیشتر

آیا در مورد سوئیچ 24 پورت سیسکو مدل WS-C3850-24XS-S سوالی دارید؟
اگر می‌خواهید درباره این سوئیچ شبکه بیشتر بدانید اکنون از طریق Live Chat یا sales@barghchi.com با ما تماس بگیرید.

ارزش خرید از دیدگاه فروشنده
    نوع سوئیچ

    مدیریتی, فیبر نوری, بی سیم

    پورت های رابط

    10/100/1000

    enclosure type

    Rack-mountable – 1U

    Network management Interface

    Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling, Management console port: RJ-45-to-DB9 cable for PC connections

    Available PoE Power

    None

    Switching Capacity

    320Gbps

    Max Number of Stacks

    up to 9 switches with same IOS feature set in same series

    Stack Bandwidth

    480Gbps

    Forwarding Performance

    454.55Mpps

    FNF entries

    48,000 flows

    Maximum VLANs IDs

    1,000

    MAC Address Table Size

    32K

    CPU

    Multicore CPU

    ظرفیت حافظه رم

    4 G

    Flash Memory

    4 G

    Number of AP per switch/stack

    100

    Number of wireless clients per switch/stack

    2000

    Total number of WLANs per switch

    64

    Wireless bandwidth per switch

    up to 20Gbps

    Supported Aironet AP series

    1040, 1140, 1260, 1600, 2600, 3500, 3600

    Console ports

    USB (Type-B), Ethernet (RJ-45)

    Expansion Slots

    1 network module slot and 1 power redundant slot

    Network Modules Selection

    C3850-NM-2-10G: 2 x 10G or 4 x 1G uplinks network module, C3850-NM-4-1G: 4 x 1G uplinks network module

    Stacking cable

    STACK-T1-1M StackWise stacking cable with a 1.0 m length, STACK-T1-3M StackWise stacking cable with a 3.0 m length, STACK-T1-50CM StackWise stacking cable with a 0.5 m length

    Power supply

    PWR-C1-715WAC

    Power Device

    plug-in module, Power supply, redundant

    (Stack Power Cable (recommended

    CAB-SPWR-150CM stack power cable with a 150CM length, CAB-SPWR-30CM stack power cable with a 30CM length

    Power Redundancy

    Optional

    (Voltage range (Auto

    110V-240V

    (Power Consumption of standalone(in Watts

    205.5 (Max)

    Rack Mounting Kit

    Optional

    MTBF

    307,990(hours)

    Compliant Standards

    IEEE 802.11, IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.1X-Rev, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, RMON I and II standards, SNMP v1, v2c, and v3

    System software

    IOS IP Base (Upgradable)

    EnergyWise license

    ENERGY-MGMT, ENERGY-MGT-100-K9

    Software license

    C3850-24-S-E: IP Base to IP Services RTU paper license, L-C3850-24-S-E: IP Base to IP Services RTU electronic license

    Access Point Licenses

    L-LIC-CT3850-UPG: Primary upgrade license SKU for Cisco 3850 wireless controller (e-delivery), L-LIC-CTIOS-1A: 1 access point adder license for Cisco IOS Software based wireless controller (e-delivery), LIC-CT3850-UPG: Primary upgrade license SKU for Cisco 3850 wireless controller (paper license), LIC-CTIOS-1A: 1 access point adder license for the Cisco IOS Software based wireless controller (paper license)

    ویژگی ها

    802.1p queues, 802.1W/802.1S, 802.3ad LACP and PAgP, ACL Classification, Auto QoS, CDPv2, Class & Policy Maps, Configure Buffers and Thresholds, Configure CoS Priority Queues, Configure Queue Weights, DHCP server, DSCP transparency, Dynamic Trunking Protocol (DTP), Flexible Netflow, HSRP, VRRP, BLGP, IGMPv1,v2,v3 and MLDv1, v2, ingress Policing, Jumbo Frames, LLDP, Modify CoS and DSCP Mapping, Per VLAN policies, PIM-SM/DM, PIM sparse-dense mode, SSM, port CoS Trust and Override, Port Fast/Uplink Fast, Priority Queuing, PVST/PVST+, RIPv1, v2 EIGRP, PIM OSPF, OSPFv3, EIGRPv6, BGPv4, IS-ISv4, RPS Support, Scheduling, Trusted Boundary, VLANS, Voice Vlan, VRF-lite, VTPv2, Weighted Tail Drop

    Advanced Network security

    Bidirectional data support on a SPAN, Bridge protocol data unit (BPDU) Guard, Cisco security VLAN ACL, Cisco standard and extended IP security router ACLs, complete identity and security, DHCP snooping, Dynamic ARP inspection (DAI), IEEE 802.1ae, IGMP filtering, IP source guard, MAC address notification, Multidomain authentication, Port security, Port-based ACLs, Private VLAN, Router and VLAN ACLs, Secure Shell (SSH) Protocol, Kerberos, and Simple Network Management Protocol Version 3 (SNMPv3), Spanning Tree Root Guard (STRG), TACACS+ and RADIUS authentication, The Unicast Reverse Path Forwarding (uRPF), TrustSec SXP, User authentication, Wireless end-to-end security

    Management

    ●CISCO-STP-EXTENSIONS-MIB, AIRESPMACE-WIRELESS-MIB, BRIDGE-MIB, CISCO-AUTH-FRAMEWORK-MIB, CISCO-BGP4-MIB, BGP4-MIB, CISCO-BRIDGE-EXT-MIB, CISCO-BULK-FILE-MIB, CISCO-CABLE-DIAG-MIB, CISCO-CALLHOME-MIB, CISCO-CDP-MIB, CISCO-CEF-MIB, CISCO-CIRCUIT-INTERFACE-MIB, CISCO-CONFIG-COPY-MIB, CISCO-CONFIG-MAN-MIB, CISCO-CONTEXT-MAPPING-MIB, CISCO-DEVICE-LOCATION-MIB, CISCO-DHCP-SNOOPING-MIB, CISCO-EIGRP-MIB, CISCO-EMBEDDED-EVENT-MGR-MIB, CISCO-ENTITY-FRU-CONTROL-MIB, CISCO-ENTITY-SENSOR-MIB, CISCO-ENTITY-VENDORTYPE-OID-MIB, CISCO-ERR-DISABLE-MIB, CISCO-FLASH-MIB, CISCO-FLOW-MONITOR-MIB, CISCO-FTP-CLIENT-MIB, CISCO-HSRP-EXT-MIB, CISCO-HSRP-MIB, CISCO-IETF-ISIS-MIB, CISCO-IF-EXTENSION-MIB, CISCO-IGMP-FILTER-MIB, CISCO-IMAGE-MIB, CISCO-IP-CBR-METRICS-MIB, CISCO-IP-STAT-MIB, CISCO-IP-URPF-MIB, CISCO-IPMROUTE-MIB, CISCO-L2L3-INTERFACE-CONFIG-MIB, CISCO-LAG-MIB, CISCO-LICENSE-MGMT-MIB, CISCO-LWAPP-AP-MIB, CISCO-LWAPP-CCX-RM-MIB, CISCO-LWAPP-CLIENT-ROAMING-MIB, CISCO-LWAPP-DOT11-CCX-CLIENT-DIAG-MIB, CISCO-LWAPP-DOT11-CCX-CLIENT-MIB, CISCO-LWAPP-DOT11-CLIENT-CCX-REPORTS-MIB, CISCO-LWAPP-DOT11-CLIENT-MIB, CISCO-LWAPP-DOT11-MIB, CISCO-LWAPP-DOWNLOAD-MIB, CISCO-LWAPP-IDS-MIB, CISCO-LWAPP-LINKTEST-MIB, CISCO-LWAPP-MFP-MIB, CISCO-LWAPP-MOBILITY-EXT-MIB, CISCO-LWAPP-QOS-MIB, CISCO-LWAPP-REAP-MIB, CISCO-LWAPP-ROGUE-MIB, CISCO-LWAPP-RRM-MIB, CISCO-LWAPP-SI-MIB, CISCO-LWAPP-TSM-MIB, CISCO-LWAPP-WLAN-MIB, CISCO-LWAPP-WLAN-SECURITY-MIB, CISCO-MAC-AUTH-BYPASS-MIB, CISCO-MAC-NOTIFICATION-MIB, CISCO-MDI-METRICS-MIB, CISCO-MEMORY-POOL-MIB, CISCO-OSPF-MIB, CISCO-OSPF-TRAP-MIB, CISCO-PAE-MIB, CISCO-PAGP-MIB, CISCO-PIM-MIB, CISCO-PING-MIB, CISCO-PORT-QOS-MIB, CISCO-PORT-SECURITY-MIB, CISCO-PORT-STORM-CONTROL-MIB, CISCO-POWER-ETHERNET-EXT-MIB, CISCO-PRIVATE-VLAN-MIB, CISCO-PROCESS-MIB, CISCO-PRODUCTS-MIB, CISCO-RF-MIB, CISCO-RTP-METRICS-MIB, CISCO-RTTMON-MIB, CISCO-SMART-INSTALL-MIB, CISCO-SNMP-TARGET-EXT-MIB, CISCO-STACKMAKER-MIB, CISCO-STACKWISE-MIB, CISCO-SYSLOG-MIB, CISCO-TCP-MIB, CISCO-UDLDP-MIB, CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB, CISCO-VLAN-MEMBERSHIP-MIB, CISCO-VTP-MIB, ENTITY-MIB, EtherLike-MIB, HC-RMON-MIB, IEEE8021-PAE-MIB, IEEE8023-LAG-MIB, IF-MIB, IGMP-MIB, IGMP-STD-MIB, IP-FORWARD-MIB, IP-MIB, IPMROUTE-STD-MIB, LLDP-EXT-MED-MIB, LLDP-MIB, NOTIFICATION-LOG-MIB, OLD-CISCO-MEMORY-MIB, POWER-ETHERNET-MIB, RMON-MIB, RMON2-MIB, SNMP-COMMUNITY-MIB, SNMP-FRAMEWORK-MIB, SNMP-MPD-MIB, SNMP-NOTIFICATION-MIB, SNMP-PROXY-MIB, SNMP-TARGET-MIB, SNMP-USM-MIB, SNMP-VIEW-BASED-ACM-MIB, SNMPv2-MIB, TCP-MIB, UDP-MIB

    Technical Support and Services

    Cisco Focused Technical Support Services, Cisco Smart Foundation Service, Cisco SMARTnet Service, Cisco SP Base Service

    Storage environment

    -40ºF to 160ºF (-40ºC to 70ºC)

    Operating altitude

    Up to 13,000 Feet (Up to 4000 Meters)

    Storage altitude

    Up to 15,000 Feet (Up to 4573 Meters)

    Operating relative humidity

    10% to 95% noncondensing

    Storage relative humidity

    10% to 95% noncondensing

    ابعاد

    4.45 cm Height x 44.5 cm Width x 45 cm Depth

    وزن(تقریبی)

    13.5 Pounds (6.1 Kg)

    تعداد پورت SFP

    24 عدد

    DRAM

    4G

    PoE

    ندارد

    سرعت پهنای باند

    320 گیگابیت بر ثانیه

    قابلیت استک شدن

    دارد

    سرعت پهنای باند وایرلس

    20 گیگابیت بر ثانیه
