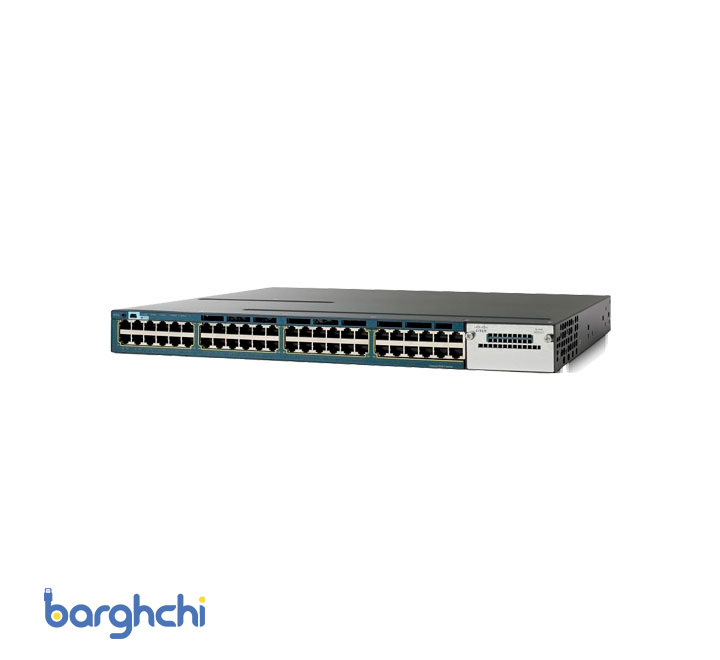

سوئیچ 48 پورت سیسکو مدل WS-C3560X-48T-S
مشخصات این سوئیچ شبکه که یکی از مدلهای سوئیچ شبکه سیسکو میباشد به شرح زیر میباشد:
– 48 * 10/100/1000 Ethernet ports
– Four optional uplink network modules with GE or 10GE ports
– Dual redundant, modular power supplies and fans
– baseline Layer 3 routing features
– Flexible NetFlow and switch-to-switch hardware encryption with the Service Module uplink
– USB Type-A and Type-B ports for storage and console respectively and an out-of-band Ethernet management port
Cisco Catalyst 3560-X Series Switches support 4 optional network modules for uplink ports (Figure 1);The default switch configuration doesn’t include the uplink module;
When purchasing switch, customers have flexibility to choose any group of network modules described below:
توضیحات سوئیچ 48 پورت سیسکو مدل WS-C3560X-48T-S
| توضیحات محصول | Product Number |
| Four GbE port network module | C3KX-NM-1G |
| Two 10GbE SFP+ ports network module with four physical ports with two SFP+ and two regular SFP ports | C3KX-NM-10G |
| Two 10GB-T ports network module | C3KX-NM-10GT |
| Service Module with two 10GbE SFP+ ports network module for Netflow and MACsec encryption | C3KX-SM-10G |
Dual Redundant Modular Power Supplies
Cisco Catalyst 3750-X Series and 3560-X Series Switches support dual redundant power supplies (Figure 2);
One power supply is shipped with the switch by default;
Other power supply/suppliers can be purchased when ordering the switch or next time according to your needs.
If only one power supply is installed, it should always be in the power supply bay 1.
Table below shows the different power supplies available in these switches and available PoE power.
Power Supply Models
| Default Power Supply | Available PoE Power | مدل |
| C3KX-PWR-350WAC | – | 24 Port Data Switch |
| 48 Port Data Switch | ||
| C3KX-PWR-715WAC | 435W | 24 Port PoE Switch |
| 48 Port PoE Switch | ||
| C3KX-PWR-1100WAC | 800W | 48 Port Full PoE Switch |
| C3KX-PWR-1100WAC | 800W | 24 Port UPOE Switch |
| 48 Port UPOE Switch |
