| نوع سوئیچ |
مدیریتی
|
| تعداد پورت شبکه |
24 پورت
|
| پورت های رابط |
10/100
|
| Flash Memory |
64MG
|
| وضعیت |
USED
|
| Uplinks |
1G Uplink
|
| 10/100 Ethernet Interfaces |
24
|
| Uplink Interfaces |
2 (SFP or 1000BASE-T)
|
| Cisco IOS Software Feature Set |
LAN Base
|
| Available PoE Power |
None
|
| (Forwarding bandwidth(Gbps |
16 Gbps
|
| Maximum active VLANs |
255
|
| VLAN IDs available |
4K
|
| Maximum transmission unit (MTU) - L3 packet |
9000 bytes
|
| Jumbo frame - Ethernet frame |
9018 bytes
|
| Forwarding Rate: 64-Byte L3 Packets, Millions of packets per second |
6.5
|
| Operating altitude |
Up to 10,000 Feet (Up to 3,000 Meters)
|
| Storage altitude |
Up to 13,000 Feet (Up to 4,000 Meters)
|
| Operating relative humidity |
10% to 95% noncondensing
|
| Storage relative humidity |
10% to 95% noncondensing
|
| Sound Pressure |
Maximum, LpAD: 36, Typical, LpAm: 33
|
| Sound Power |
Maximum, LwAD: 46, Typical, LwA: 43
|
| MTBF |
667 (hours)
|
| Ethernet Interfaces |
1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Category 5 UTP cabling, 10BASE-T ports: RJ-45 connectors, 2-pair Category 3, 4, or 5 unshielded twisted-pair (UTP) cabling100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 UTP cabling
|
| LED Status Lights Indicators |
activity, disabled, link duplex, Link integrity, link speed, Port status, RPS, speed
|

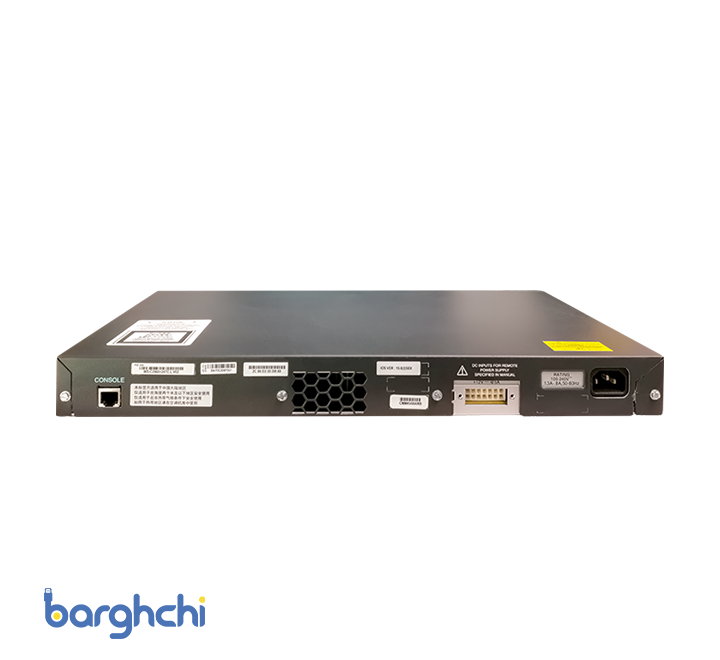

| Console |
CAB-CONSOLE-RJ45 Console cable 6 ft. with RJ-45
|
| Management |
●CISCO-STP-EXTENSIONS-MIB, BRIDGE-MIB, CICSO-TCP-MIB, CISCO-CABLE-DIAG-MIB, CISCO-CDP-MIB, CISCO-CLUSTER-MIB, CISCO-CONFIG-COPY-MIB, CISCO-CONFIG-MAN-MIB, CISCO-DHCP-SNOOPING-MIB, CISCO-ENTITY-VENDORTYPE-OID-MIB, CISCO-ENVMON-MIB, CISCO-ERR-DISABLE-MIB, CISCO-FLASH-MIB, CISCO-FTP-CLIENT-MIB, CISCO-IGMP-FILTER-MIB, CISCO-IMAGE-MIB, CISCO-IP-STAT-MIB, CISCO-LAG-MIB, CISCO-MAC-NOTIFICATION-MIB, CISCO-MEMORY-POOL-MIB, CISCO-PAGP-MIB, CISCO-PING-MIB, CISCO-POE-EXTENSIONS-MIB, CISCO-PORT-QOS-MIB, CISCO-PORT-SECURITY-MIB, CISCO-PORT-STORM-CONTROL-MIB, CISCO-PROCESS-MIB, CISCO-PRODUCTS-MIB, CISCO-RTTMON-MIB, CISCO-SMI-MIB, CISCO-SYSLOG-MIB, CISCO-TC-MIB, CISCO-UDLDP-MIB, CISCO-VLAN-IFTABLERELATIONSHIP-MIB, CISCO-VLAN-MEMBERSHIP-MIB, CISCO-VTP-MIB, ENTITY-MIB, ePM MIB, EtherLike-MIB, IEEE8021-PAE-MIB, IEEE8023-LAG-MIB, IF-MIB, INET-ADDRESS-MIB, OLD-CISCO-CHASSIS-MIB, OLD-CISCO-FLASH-MIB, OLD-CISCO-INTERFACES-MIB, OLD-CISCO-IP-MIB, OLD-CISCO-SYS-MIB, OLD-CISCO-TCP-MIB, OLD-CISCO-TS-MIB, RFC1213-MIB, RMON-MIB, RMON2-MIB, SNMP-FRAMEWORK-MIB, SNMP-MPD-MIB, SNMP-NOTIFICATION-MIB, SNMP-TARGET-MIB, SNMPv2-MIB, TCP-MIB, UDP-MIB
|
| Compliant Standards |
IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, RMON I and II standards, SNMP v1, v2c, and v3
|
| RFC compliance |
802.1X RADIUS, ARPRFC 854, Assured Forwarding, BOOTP extensionsRFC 1643, Bootstrap Protocol (BOOTP)RFC 959, Bridge MIBRFC 1542, DHCP Relay Agent Information OptionRFC 3376, DHCPRFC 2138, Differentiated Services (DiffServ) PrecedenceRFC 2597, Ethernet Interface MIBRFC 1757, Expedited ForwardingRFC 2571, FTP, HTTPRFC 2131, ICMP IPv6RFC 2474, ICMPRFC 793, IF MIB v3RFC 2373, IGMP v3RFC 3580, Internet Control Message Protocol (ICMP) Router DiscoveryRFC 1305, IP AddressesRFC 1256, IP Multicast and IGMPRFC 1157, IPRFC 792, IPv6, IPv6 Aggregatable AddrsRFC 2460, IPv6 AutoconfigurationRFC 2463, IPv6 Neighbor DiscoveryRFC 2462, NTPRFC 1492, Path MTU Discovery for IPv6FRC 2068, RADIUSRFC 2233, RFC 1112, RFC 1493, RFC 1981, RFC 2461, RFC 2598, RFC 768, RMONRFC 1901, SNMP ManagementRFC 3046, SNMP v1RFC 1166, SNMP v2, SNMP v2CRFC 1902-1907, TACACS+, TCPRFC 826, TelnetRFC 951, TFTPRFC 791, UDPRFC 783
|
| (Voltage range (Auto |
100 to 240 VAC
|
| (Current (Amperes |
4.0 – 2.0
|
| فرکانس |
50 to 60Hz
|
| Power Rating |
0.03
|
| (DC Input Voltages (RPS Input |
2A at 12V
|
| Power Consumption Operational |
0% traffic: 18.4, 10% traffic: 18.3, 100% traffic: 18.6, ATIS weighted average: 18.3
|
| Regulatory Compliance |
Products should comply with CE Marking per directives 2004/108/EC and 2006/95/EC
|
| Safety |
AS/NZS 60950-1, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, UL 60950-1 Second Edition
|
| (Electromagnetic emissions(EMC |
47CFR Part 15 (CFR 47) Class A, AS/NZS CISPR22 Class A, CISPR22 Class A, CNS13438 Class A, EN55022 Class A, EN61000-3-2, EN61000-3-3, ICES003 Class A, KN22 Class A, VCCI Class A
|
| EMC - Immunity |
CISPR24, EN300386, EN55024, KN24
|
| Environmental |
Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU
|
| پاور |
Only the Cisco RPS 2300 (model PWR-RPS2300) should be attached to the redundant-power-system receptacle., The Cisco RPS connector offers connection for an optional Cisco RPS 2300 that uses AC input and supplies DC output to the switch., The internal power supply is an auto-ranging unit and supports input voltages between 100 and 240V AC., Use the supplied AC power cord to connect the AC power connector to an AC power outlet.
|
| لایه ها |
لایه 2
|
| ابعاد |
1.73 x 17.70 x 9.52 in
|
| وزن(تقریبی) |
8 lb (3.6 Kg)
|
| وزن بسته |
17.04 lb (7.73 Kg)
|
| DRAM |
128MB
|
| تعداد پورت شبکه Downlink |
24 عدد
|
| تعداد پورت شبکه Uplink |
2 عدد
|
| سرعت پورت شبکه Downlink |
مگابیت (10/100)
|
| سرعت پهنای باند |
16 گیگابیت بر ثانیه
|
| PoE |
ندارد
|
