نقد و بررسی محصول

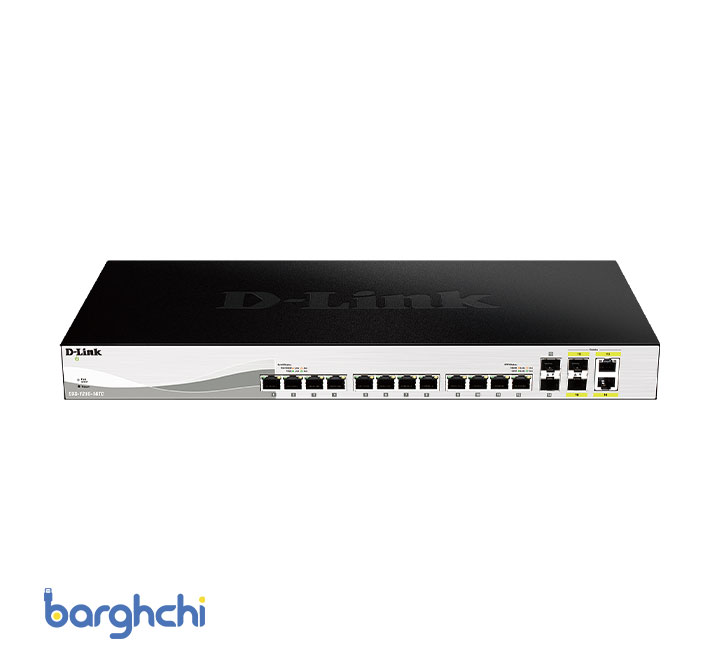

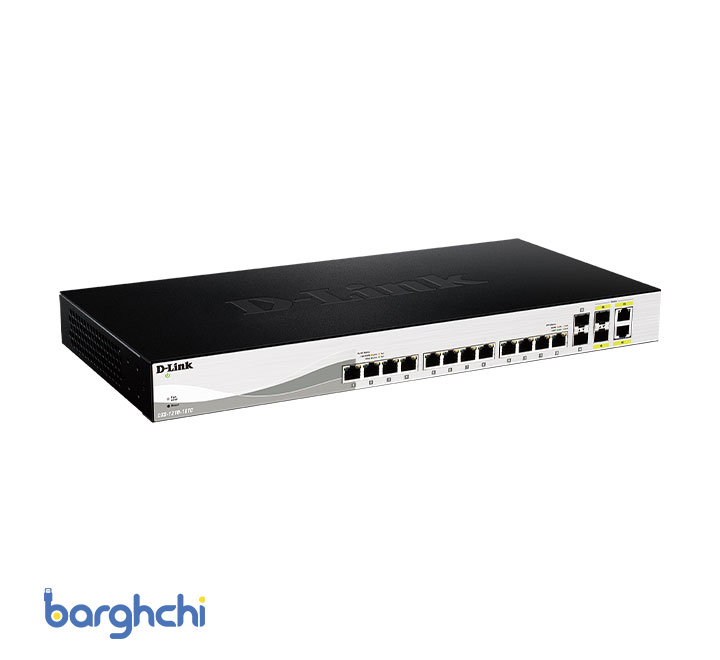

معرفی سوئیچ هوشمند D-link مدل DXS-1210-16TC
| مشخصات محصول | مشخصات محصول | جزییات |
|---|---|---|
| ویژگی‌های سخت‌افزاری | لایه |
L2, L3 |
| رابط ها |
12 x 10GBASE-T ports, 2 x 10GBASE-T/SFP+ combo ports, 2 x SFP+ ports |
|
| تعداد پورت LAN |
16 |
|
| Gigabit SFP Ports |
2 |
|
| 10/100/1000 Base-T Ports |
12 |
|
| Gigabit Combo Ports |
2 |
|
| PoE |
ندارد |
|
| منبع تغذیه |
Internal |
|
| فن |
فن هوشمند |
|
| ابعاد(طول*عرض*ارتفاع)(میلی متر) |
440x210x44 |
|
| نشانگر LED |
Link/Activity/Speed (Per 10G SFP+ port), Link/Activity/Speed (Per 10GBASE-T port), Power/Fan (Per device) |
|
| داخل رک |
دارد |
|
| PoE plus | PoE plus |
ندارد |
| ویژگی های نرم افزاری | استانداردهای پورت |
Auto MDI/MDIX support for 1000/10GBASE-T, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3ae 10GbE over fiber, IEEE 802.3an 10GBASE-T 10 Gigabit Ethernet, IEEE 802.3az compliance, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3z 1000BASE-X |
| نوع سوئیچ |
مدیریتی |
|
| ظرفیت سوئیچ |
320Gbps |
|
| فایروال و امنیت دسترسی |
ARP Spoofing Prevention, Broadcast/Multicast/Unicast Storm Control, D-Link Safeguard Engine, DHCP Server Screening, DHCP Snooping, DHCPv6 Guard, DoS Attack Prevention, Duplicate Address Detection (DAD), Dynamic ARP Inspection, IP Source Guard, IP-MAC-Port Binding, IPv6 ND Inspection, IPv6 Route Advertisement (RA) Guard, IPv6 Snooping, SSL:Supports v1/v2/v3 -Supports IPv4/v6 access, Traffic Segmentation |
|
| مدیریت |
System Log, Telnet Server, TFTP Client, BootP/DHCP Client, D-Link Network Assistant Utility, Debug command, DHCP Relay, DNS Client, LLDP, LLDP & LLDP-MED, SNMP Trap, SNMP v1/v2c/v3, SNTP, Trusted Host, Web-based GUI |
|
| VLAN |
802.1Q, Asymmetric VLAN, Auto Surveillance VLAN, GVRP, Port-based VLAN, Voice VLAN |
|
| عملکردهای لایه 3 |
768 Static ARP, ARP, Default Route, IP Interface, IPv6 Neighbor Discovery (ND), Max. 64 IPv4 entries, Max. 64 IPv6 entries, Static Route, Supports 8 IPv4/v6 interfaces |
|
| کیفیت خدمات (QOS) | Number of Queues per port |
8 |
| Priority Queue Mapping based on DSCP |
دارد |
|
| Weighted Round Robin (WRR) |
دارد |
|
| عملکرد | MAC-address table |
16K |
| عملکردهای لایه 2 |
802.1D STP, 802.1s MSTP, 802.1w RSTP, 802.3ad Link Aggregation: Maximum of 8 groups/8 ports per group, 802.3x Flow Control, ERPS (Ethernet Ring Protection Switching), Flow Control, HOL Blocking Prevention, IGMP Snooping, IGMP v1/v2 Snooping, IGMP v3 awareness, Jumbo Frame Up to 9KB, LLDP, LLDP-MED, Loopback Detection, MAC Address Table, Many-to-One, MLD Snooping, MLD v1 Snooping, MLD v2 awareness, One-to-One, Per VLAN IGMP snooping, Port Mirroring, Spanning Tree Protocol, Static MAC Addresses, Support 128 static multicast addresses, Support 384 groups, Support host-based fast leave, Supports 384 IGMP groups, Supports at least 128 static multicast addresses, Supports Mirroring for Tx/Rx/Both, Up to 16K entries |
|
| سایر ویژگی‌ها | پشتیبانی از D-LINK Green |
دارد |
| گواهی نامه ها |
BSMI, C-Ticket, CCC, CE, FCC, VCCI |
|
| گارانتی | گارانتی |
2 سال گارانتی ایزی |
